Four-Way Ball Valves

Features

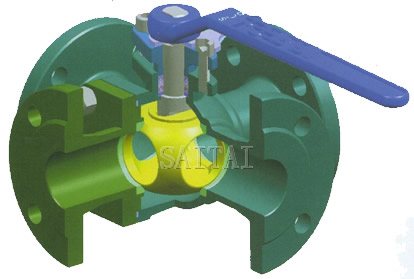

Floating 4 Way
Floating 4 Way

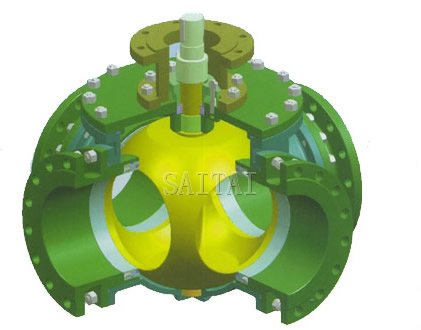

Trunnion Mounted Four Way
Trunnion Mounted Four Way

Size: 1/2"~20"
Class: 150 / 300 Lb
Two-Piece & Multi-piece Cast Body
Floating and Trunnion Mounted Ball, Full Bore
Anti-Static Device
Blow-out Proof Stem
Fire Safe Design
Emergency Sealant Injector

Materials

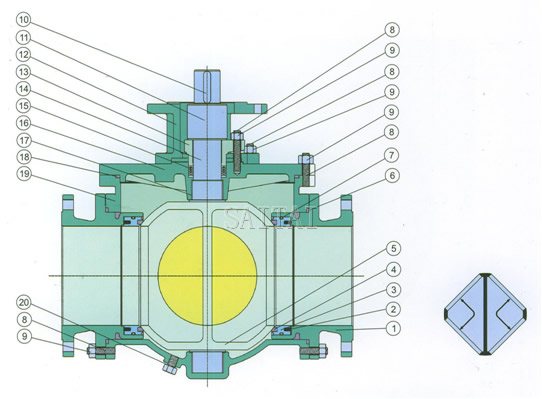

Materials of Four-Way Ball Valves
Materials of Four-Way Ball Valves
No. Part Material
1 Bonnet A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex
2 Seat Spring Inconel X-750 S.S.304 S.S.316
3 Seat Ring ASTM A105+ENP A182-F6, F316, F316L, F304
4 Seat PTFE RTPFE PEEK PPL
5 Ball A351-CF8, CF8M, CF3, CF3M, Duplex
6 Gasket PTFE S.S.304+Graphite S.S.316+Graphite
7 O-ring NBR Viton
8 Stud ASTM A193-B7, B7M, B8, B8M
9 Nut ASTM A194-2H, 2HM, 8, 8M
10 Key 1045 Stainless Steel
11 Coupling ASTM A105+ENP A182-F6
12 Yoke A216-WCB A351-CF8
13 Gland Flange A216-WCB A351-CF8, CF8M
14 Stem ASTM A105+ENP A182-F6, F316, F316L, F304L,17-4PH, F51
15 Packing PTFE Graphite
16 Cover A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex
17 Sliding Bearing Stainless Steel + PTFE S.S.316+PTFE
18 Gasket PTFE S.S.304+Graphite S.S.316+Graphite
19 Body A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex
20 Vent Valve Carbon Steel+ENP A182-F304, F316, F316L ,F304L

ASME Pressure Class 150 / 300 Lb-PTFE RTPFE PEEK PPL (Soft) Seated-Flanged Ends
Four(4) Way-Cast Body-Floating and Trunnion Mounted-Full Bore-Dimensions and Weights

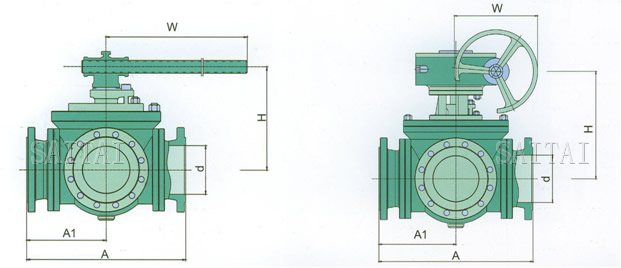

Dimensions and Weights of Four-Way Ball Valves
Size d A A1 H W
in mm mm mm mm mm
1/2 14 150 75 90 140
3/4 19 150 75 90 140
1 25 180 90 102 155
1-1/4 38 200 100 115 250
1-1/2 48 220 110 135 250
2 50 240 120 140 350
2-1/2 65 260 130 155 350
3 78 280 140 185 420
4 100 320 160 210 700
5 125 380 190 270 1000
6 148 440 220 305 1300
8 198 550 275 335 1800
10 248 730 365 480 ~350
12 298 850 425 510 ~400
14 337 980 490 560 ~500
16 387 1100 550 620 ~500
20 489 1250 625 680 ~500
