IHB型便拆式化工球友会
IHB型便拆式化工泵（简称：IHB化工泵），为便拆式卧式化工球友会
，其外形安装尺寸均与ISB型泵一致，则较ISB型泵具有更高的水力效率和更优的气蚀性能，且结构更可靠，轴密封和使用寿命上均有较大提高。非自吸装有标准风冷电机和机械密封，独特设计的电机和泵采用同轴联接。带有法兰的螺旋形通道铸铁泵壳，当泵转子部件需保养或更换配件时，不需拆电机，泵体只需打开泵盖取出叶轮，密封更换便可，叶轮经过静平衡校验，用螺母固定在轴上，背部有平衡孔表面光滑，被加工的尺寸上高度特确，并保证具有良好的平衡。用于输送介质稀薄、清洁的具有腐蚀型、非易爆且不含固体颗粒或纤维的液体，IHB型泵输送最高温度为120℃液体。适用于石油、化工、冶金、电力、造纸、食品、制药和合成纤维等部门。

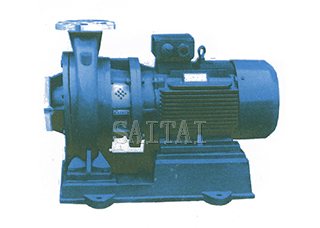

IHB型便拆式化工球友会
款型表明

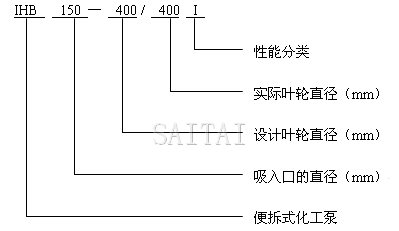

型号说明
机械性能技术参数
|
性能 |
流量 |
扬程 |
配套功率 |
工作压力 |
介质温度范围 |
进出口径 |
| 参数 |
1900m3/h |
133m |
250kw |
10巴 和16巴 |
-20℃―+120℃ |
DN40-DN400mm |
特点技术指标表
表1
|
型号 |
流量 |
扬程
m |
效率
% |
转速
r/min |
电机功率 |
必需气蚀余量 |
重量
Kg |
|
型号 |
流量 |
扬程
m |
效率
% |
转速
r/min |
电机功率 |
必需气蚀余量 |
重量
Kg |
| m3/h |
L/S |
m3/h |
L/S |
| 40-100/96 |
3.9
5.6
7.4 |
1.08
1.56
2.06 |
10.6
10
9 |
49
55
43 |
2900 |
0.37 |
2.3 |
29 |
65-160/152 |
16.4
23.4
30.4 |
4.56
6.5
8.44 |
30
28
24.5 |
57
65
62 |
2900 |
4.0 |
2.5 |
75 |
| 40-100/106 |
4.4
6.3
8.3 |
1.22
1.75
2.31 |
13.2
12.5
11.3 |
51
57
56 |
2900 |
0.55 |
2.3 |
30 |
65-160/165 |
17.5
25
32.5 |
4.86
6.94
9.04 |
34.4
32
27.5 |
57
66
63 |
2900 |
4.0 |
2.5 |
75 |
| 40-125/132 |
3.9
5.6
7.4 |
1.08
1.56
2.06 |
17.6
16
14.4 |
44
48
46 |
2900 |
0.75 |
2.3 |
32 |
65-200/185 |
15.2
21.8
28.3 |
4.22
6.06
7.86 |
40.5
38
34 |
49
58
58 |
2900 |
5.5 |
2.5 |
100 |
| 40-125/142 |
4.4
6.3
8.3 |
1.22
1.75
2.31 |
21
20
18 |
44
49
47 |
2900 |
1.1 |
2.3 |
35 |
|
65-200/195 |
16.4
23.5
30.5 |
4.56
6.53
8.47 |
46.4
44
40 |
61
60
61 |
2900 |
7.5 |
2.5 |
110 |
| 40-160/142 |
3.8
5.5
7.2 |
1.06
1.53
2.00 |
25.5
24
22.5 |
40
40
40 |
2900 |
1.1 |
2.3 |
32 |
65-200/205 |
17.5
25
32.5 |
4.86
6.94
9.03 |
52.7
50
45.5 |
52
61
62 |
2900 |
7.5 |
2.5 |
115 |
| 40-160/152 |
4.1
5.9
7.8 |
1.13
1.63
2.16 |
29
28
26.3 |
36
41
41 |
2900 |
1.5 |
2.3 |
33 |
65-250/235 |
15
21.6
28 |
4.17
6.0
7.78 |
61
60
58 |
41
51
54 |
2900 |
11.0 |
2.5 |
170 |
| 40-160/165 |
4.4
6.3
8.3 |
1.22
1.75
2.31 |
34
32.30 |
40
44
43 |
2900 |
2.2 |
2.3 |
35 |
65-200/245 |
16.4
23.4
30.5 |
4.56
6.5
8.47 |
71.5
70
67 |
48
53
55 |
2900 |
11.0 |
2.5 |
170 |
| 40-200/185 |
3.7
5.3
7.3 |
1.03
1.47
1.74 |
38
36
34.5 |
32
32
32 |
2900 |
2.2 |
2.3 |
50 |
65-250/255 |
17.5
25
32.5 |
4.89
6.94
9.03 |
82
80
76.5 |
42
53
55 |
2900 |
15.0 |
2.5 |
185 |
| 40-200/195 |
4.1
5.9
7.8 |
1.4
1.64
2.17 |
45
44
42 |
24
34
32 |
2900 |
3.0 |
2.3 |
58 |
65-315/285 |
14.4
20.6
26.8 |
4.0
5.72
7.44 |
86
85
83 |
33
41
44 |
2900 |
15.0 |
2.5 |
210 |
| 40-200/205 |
4.4
6.3
8.3 |
1.22
1.75
2.31 |
51
50
48 |
29
36
35 |
2900 |
4.0 |
2.3 |
69 |
65-315/295 |
15.7
22.5
29.2 |
4.36
6.25
8.0 |
103
101
98 |
34
42
45 |
2900 |
18.5 |
2.5 |
225 |
| 40-250/235 |
3.8
5.5
7.2 |
1.06
1.53
2.00 |
61.5
60
56 |
26
30
29 |
2900 |
5.5 |
2.3 |
80 |
65-315/307 |
16.6
23.7
31 |
4.61
6.58
8.6 |
115
113
110 |
35
43
47 |
2900 |
22.0 |
2.5 |
260 |
| 40-250/245 |
4.1
5.9
7.8 |
1.14
1.64
2.17 |
72
70
65 |
27
31
30 |
2900 |
5.5 |
2.3 |
105 |
65-315/316 |
17.5
25
32.5 |
4.86
6.94
9.03 |
127
125
122 |
35
43
47 |
2900 |
30.0 |
2.5 |
320 |
| 50-250/255 |
4.4
6.3
8.3 |
1.22
1.75
2.31 |
82
80
74 |
27
31
31 |
2900 |
7.5 |
2.3 |
110 |
80-100/96 |
31.3
45
58 |
8.7
12.5
16.1 |
11
10
8 |
69
75
71 |
2900 |
2.2 |
3.0 |
60 |
| 50-100/96 |
8
11
14.5 |
2.22
3.05
4.03 |
11
10
9 |
57
63
60 |
2900 |
0.75 |
2.3 |
35 |
80-100/106 |
35
50
65 |
9.72
13.9
18.1 |
13.8
12.5
10 |
70
76
73 |
2900 |
3.0 |
3.0 |
65 |
| 50-100/106 |
8.8
12.5
16.5 |
2.44
3.47
4.53 |
13.6
12.5
11.3 |
58
65
63 |
2900 |
1.1 |
2.3 |
40 |
|
80-125/132 |
31.3
45
58 |
8.7
12.5
16.1 |
17.5
16
13.6 |
67
74
72 |
2900 |
4.0 |
3.0 |
80 |
| 50-125/132 |
8
11
14.5 |
2.22
3.05
4.03 |
17
16
14 |
61
60
58 |
2900 |
1.1 |
2.3 |
40 |
80-125/142 |
35
50
65 |
9.72
13.9
18.1 |
22
20
17 |
70
75
73 |
2900 |
5.5 |
3.0 |
100 |
| 50-125/142 |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
21.5
20
17.8 |
52
61
60 |
2900 |
1.5 |
2.3 |
45 |
80-160/142 |
30.3
43.3
56.3 |
8.4
12.0
15.6 |
27
24
20 |
64
72
70 |
2900 |
5.5 |
3.0 |
100 |
| 50-160/142 |
7.3
10.4
13.5 |
2.03
2.89
3.75 |
23
22
20.5 |
50
50
50 |
2900 |
1.5 |
2.3 |
46 |
80-160/152 |
32.7
46.7
61 |
9.1
13.0
16.9 |
30.6
28
25 |
65
73
72 |
2900 |
7.5 |
3.0 |
105 |
| 50-160/152 |
8.2
11.7
15.2 |
2.28
3.25
4.22 |
29
28
26 |
40
51
50 |
2900 |
2.2 |
2.3 |
50 |
80-160/165 |
35
50
65 |
9.72
13.9
18.1 |
35
32
28 |
66
74
75 |
2900 |
7.5 |
3.0 |
105 |
| 50-160/165 |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
33
32
30 |
45
52
51 |
2900 |
3.0 |
2.3 |
60 |
80-200/185 |
30.5
43.5
56.6 |
8.5
12.1
15.7 |
40.6
38
33.4 |
56
68
69 |
2900 |
7.5 |
3.0 |
120 |
| 50-200/185 |
7.5
10.6
13.8 |
2.08
2.94
3.83 |
40
38
35 |
44
44
44 |
2900 |
3.0 |
2.3 |
70 |
80-200/195 |
32.8
47
61 |
9.1
13.1
16.9 |
47
44
40 |
57
69
72 |
2900 |
11.0 |
3.0 |
170 |
| 50-200/195 |
8.3
11.7
15.3 |
2.31
3.25
4.25 |
45.8
44
42 |
37
45
45 |
2900 |
4.0 |
2.3 |
85 |
80-200/205 |
35
50
65 |
9.72
13.9
18.1 |
53.3
50
46 |
58
70
71 |
2900 |
15.0 |
3.0 |
175 |
| 50-200/205 |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
52
50
48 |
38
46
46 |
2900 |
5.5 |
2.3 |
105 |
80-250/235 |
30
43.3
56 |
8.3
12.0
15.6 |
63
60
54 |
54
61
62 |
2900 |
15.0 |
3.0 |
190 |
| 50-250/225 |
7.1
10.0
13.1 |
1.97
2.78
3.64 |
53.2
52
50.4 |
27
36
39 |
2900 |
5.5 |
2.3 |
110 |
80-250/245 |
32.5
46.7
61 |
9.0
13.0
16.9 |
73
70
64 |
53
62
63 |
2900 |
18.5 |
3.0 |
210 |
| 50-250/235 |
7.6
10.8
14 |
2.11
3.0
3.98 |
61.5
60
58 |
27.5
37
40 |
2900 |
7.5 |
2.3 |
115 |
80-250/255 |
35
53
65 |
9.72
13.9
18.1 |
83
80
72 |
55
62
63 |
2900 |
22.0 |
3.0 |
240 |
| 50-250/245 |
8.2
11.6
15.2 |
2.28
3.22
4.22 |
71.5
70
68 |
29
38
41 |
2900 |
7.5 |
2.3 |
120 |
80-315/285 |
29
41
53.6 |
9.1
11.4
14.9 |
88
85
83 |
40
53
57 |
2900 |
22.0 |
3.0 |
275 |
| 50-250/255 |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
82
80
77.5 |
29
38
40 |
2900 |
11.0 |
2.3 |
160 |
80-315/295 |
31
44.5
58 |
8.6
12.4
16.1 |
103
101
97 |
43
55
58 |
2900 |
30.0 |
3.0 |
340 |
| 65-100/96 |
15.6
22.3
29 |
4.3
6.19
8.1 |
11
10
8.4 |
68
70
70 |
2900 |
1.1 |
2.5 |
40 |
80-315/301 |
32.5
46.5
60.5 |
9
12.9
16.8 |
116
113
110 |
44
56
59 |
2900 |
30.0 |
3.0 |
345 |
| 65-100/106 |
17.5
25
32.5 |
4.68
6.94
9.03 |
13.7
12.5
10.5 |
70
72
71 |
2900 |
1.5 |
2.5 |
45 |
80-315/321 |
35
50
65 |
9.72
13.9
18.1 |
128
125
122 |
45
57
60 |
2900 |
37.0 |
3.0 |
360 |
| 65-125/132 |
15.6
22.3
29 |
4.33
6.19
8.1 |
17.5
16
14.4 |
51
69
68 |
2900 |
2.2 |
2.5 |
50 |
100-200/195 |
62.6
89
116 |
17.4
24.7
32.2 |
11
10
8.8 |
67
77
77 |
2900 |
4.0 |
4.5 |
115 |
| 65-125/142 |
17.5
25
32.5 |
4.86
6.94
9.03 |
22
20
18 |
63
71
70 |
2900 |
3.0 |
2.5 |
60 |
100-200/205 |
70
100
130 |
19.4
27.8
36.1 |
13.6
12.5
11 |
69
79
77 |
2900 |
5.5 |
4.5 |
90 |
| 65-160/142 |
15
21.6
28 |
4.17
6.10
8.44 |
26
24
21 |
53
63
62 |
2900 |
3.0 |
2.5 |
65 |
100-250/245 |
62.6
89
116 |
17.4
24.7
32.2 |
19
16
11 |
71
77
66 |
2900 |
7.5 |
4.5 |
120 |
注：尺寸图从而以定货后出示尺寸图准确。
表2
|
型 号 |
流量 |
扬程
m |
效率
% |
转速
r/min |
电机功率 |
必需气蚀余量 |
重量
Kg |
|
型号 |
流量 |
扬程
m |
效率
% |
转速
r/min |
电机功率 |
必需气蚀余量 |
重量
Kg |
| m3/h |
L/S |
m3/h |
L/S |
| 100-250/250 |
70
100
130 |
19.4
27.8
36.1 |
23.5
20
14 |
73
79
68 |
1450 |
11.0 |
4.5 |
170 |
150-250/245 |
129
184
240 |
35.8
51.2
66.7 |
18.5
17
14.4 |
75
81
79 |
1450 |
15.0 |
3.0 |
265 |
| 100-315/295 |
60.6
86.6
112.5 |
16.8
24.1
31.3 |
27
24
18 |
66
75
68 |
1450 |
11.0 |
4.5 |
180 |
150-250/255 |
140
200
260 |
38.9
55.6
72.2 |
21.8
20
17 |
76
82
80 |
1450 |
18.5 |
3.0 |
300 |
| 100-315/307 |
65.4
93.5
121.6 |
18.2
26.2
33.8 |
32
28
21 |
71
77
70 |
1450 |
11.0 |
4.5 |
185 |
150-315/295 |
121
173
225 |
33.6
48.1
62.5 |
25
24
21 |
71
79
77 |
1450 |
18.5 |
3.5 |
310 |
| 100-315/321 |
70
100
130 |
19.4
27.8
36.1 |
36.5
32
24 |
73
77
68 |
1450 |
15.0 |
4.0 |
200 |
|
150-315/307 |
131
187
243 |
36.4
51.9
67.5 |
29.5
28
24.4 |
72
80
80 |
1450 |
22.0 |
3.5 |
335 |
| 100-400/375 |
61
87
113 |
16.9
24.2
31.4 |
41
38
34 |
63
73
71 |
1450 |
15.0 |
4.0 |
195 |
150-315/321 |
140
200
260 |
38.9
55.6
72.2 |
33.8
32
28 |
73
81
76 |
1450 |
30.0 |
3.5 |
410 |
| 100-400/385 |
65.4
93.5
121.6 |
18.2
26.0
33.8 |
47.5
44
37 |
65
75
73 |
1450 |
18.5 |
4.0 |
215 |
150-400/365 |
112
160
208 |
31.1
44.4
57.8 |
34
32
28 |
68
72
72 |
1450 |
22.0 |
3.5 |
430 |
| 100-400/400 |
70
100
130 |
19.4
27.8
36.1 |
54
50
42 |
64
76
78 |
1450 |
22.0 |
4.0 |
245 |
150-400/375 |
122
174
226 |
33.9
48.3
62.9 |
41
38
33 |
70
75
74 |
1450 |
30.0 |
3.5 |
480 |
| 100-250/230（I） |
61
87
113 |
16.9
24.2
31.4 |
65
60
51 |
63
70
69 |
2900 |
30.0 |
4.0 |
330 |
150-400/385 |
131
187
243 |
36.4
51.9
67.5 |
46.6
44
38.3 |
71
77
76 |
1450 |
37.0 |
3.5 |
500 |
| 100-250/245（I） |
65.4
93.5
121.6 |
18.2
26.0
33.8 |
76
70
53.5 |
64
71
70 |
2900 |
30.0 |
4.0 |
330 |
150-400/400 |
140
200
260 |
38.9
55.6
72.2 |
53
50
44 |
72
78
72 |
1450 |
45.0 |
3.5 |
515 |
| 100-250/250（I） |
70
100
130 |
19.4
27.8
36.1 |
87
85
76 |
55
65
66 |
2900 |
37.0 |
4.0 |
345 |
150-510/475 |
112
160
208 |
31.1
44.4
57.8 |
56.5
54.5
51 |
62
67
66 |
1450 |
45.0 |
4.2 |
530 |
| 100-315/285（I） |
58
82
107 |
16.1
22.8
29.7 |
90
85
76 |
55
65
66 |
2900 |
37.0 |
4.0 |
385 |
150-510/485 |
122
174
226 |
33.9
48.3
62.9 |
65
62
58 |
63
69
68 |
1450 |
55.0 |
4.2 |
765 |
| 100-315/295（I） |
63
90
117 |
17.5
25.0
32.5 |
106.6
101
92 |
57
67
68 |
2900 |
45.0 |
4.0 |
440 |
150-510/495 |
131
187
243 |
36.4
51.9
67.5 |
73
70
66 |
65
71
69 |
1450 |
75.0 |
4.2 |
860 |
| 100-315/307（I） |
66.5
95
123.6 |
18.5
26.4
34.3 |
119
113
104 |
58
68
69 |
2900 |
55.0 |
4.0 |
550 |
150-510/510 |
140
200
260 |
38.9
55.6
72.2 |
84
80
75 |
66
72
69 |
1450 |
75.0 |
4.2 |
860 |
| 100-315/321（I） |
70
100
130 |
19.4
27.8
36.1 |
132
125
114 |
58
69
69 |
2900 |
75.0 |
4.0 |
685 |
200-250/235 |
157
243
316 |
43.7
67.5
87.8 |
16
13.5
9.0 |
76
78
76 |
1450 |
15 |
4.0 |
270 |
| 125-200/195 |
96
143.172 |
23.9
39.7
47.8 |
10.4
10
9.6 |
80
83
82 |
1450 |
7.5 |
4.0 |
130 |
200-250/245 |
189
270
351 |
52.5
75
97.5 |
19
17
13 |
77
81
77 |
1450 |
18.5 |
4.0 |
390 |
| 125-200/205 |
86
160
192 |
26.7
44.4
53.3 |
13.12.5
12 |
81
85
82 |
1450 |
11.0 |
4.0 |
180 |
200-250/255 |
210
300
360 |
58.3
83.3
100 |
22.5
20
16 |
78
83
78 |
1450 |
22 |
4.0 |
430 |
| 125-250/245 |
86
143
172 |
23.9
39.7
47.8 |
18
16
13.6 |
77
80
76 |
1450 |
11.0 |
4.0 |
210 |
200-315/295 |
189
270
324 |
52.5
75
90 |
27
23
20 |
77
81
78 |
1450 |
22 |
6.0 |
430 |
| 125-250/255 |
96
160
192 |
26.7
44.4
53.3 |
22.6
20
17 |
79
83
80 |
1450 |
15.0 |
4.0 |
225 |
200-315/307 |
196
281
337 |
54.4
78.1
93.6 |
31
27
24 |
78
82
80 |
1450 |
30 |
6.0 |
480 |
| 125-315/295 |
83
138
166 |
21.7
38.3
46.1 |
27
24
21 |
69
76
71 |
1450 |
15.0 |
4.0 |
260 |
|
200-315/321 |
210
300
360 |
58.3
83.3
100 |
36
32
28 |
77
83
81 |
1450 |
37 |
6.0 |
535 |
| 125-315/307 |
90
150
180 |
25
41.7
50 |
31.5
28
24.5 |
70
79
76 |
1450 |
18.5 |
4.0 |
280 |
200-400/365 |
176.4
252
302 |
49
70
84 |
34
30
25 |
76
79
73 |
1450 |
45 |
4.0 |
585 |
| 125-315/321 |
96
160
192 |
26.7
44.4
53.3 |
36
32
28 |
72
81
77 |
1450 |
22.0 |
5.0 |
315 |
200-400/375 |
189
270324 |
52.5
75
90 |
48
37
33 |
77
81
79 |
1450 |
45 |
4.0 |
585 |
| 125-400/375 |
83
138
166 |
21.7
38.3
46.1 |
41.3
37.5
34.5 |
71
75
71 |
1450 |
22.0 |
5.0 |
355 |
200-400/380 |
201.6
288
345.5 |
56
80
96 |
48
44
38 |
71
83
81 |
1450 |
55 |
4.0 |
700 |
| 125-400/385 |
90
150
180 |
25
41.7
50 |
48.4
44
40.5 |
72
77
76 |
1450 |
30.0 |
5.0 |
437 |
200-400/400 |
210
300
360 |
58.3
83.3
100 |
55
50
44 |
78
84
82 |
1450 |
55 |
4.0 |
700 |
| 125-400/400 |
96
160
192 |
26.7
44.4
53.3 |
55
50
46 |
74
82
80 |
1450 |
37.0 |
4.5 |
451 |
200-500/425 |
176.4
252
201.4 |
49
70
84 |
60
55
49 |
74
78
77 |
1450 |
55 |
3.0 |
700 |
| 100-250/230（I） |
83
138
166 |
21.7
38.3
46.1 |
65
60
55 |
67
76
73 |
2900 |
37.0 |
4.5 |
430 |
200-500/485 |
189
270
324 |
52.5
75
90 |
67
60
55 |
76
79
78 |
1450 |
75 |
3.0 |
835 |
| 100-250/245（I） |
90
150
180 |
25
41.7
50 |
76
70
64 |
68
77
75 |
2900 |
45.0 |
4.5 |
495 |
200-500/505 |
201.6
288
345.6 |
56
80
96 |
77
70
67 |
76
82
80 |
1450 |
90 |
3.0 |
1290 |
| 100-250/255（I） |
96
160
192 |
26.7
44.4
53.3 |
87
80
73 |
68
80
77 |
2900 |
55.0 |
4.5 |
580 |
|
200-500/540 |
210
300
360 |
58.3
83.3
100 |
87
80
75 |
77
83
81 |
1450 |
110 |
3.0 |
1415 |
| 100-315/285（I） |
80.5
134
161 |
22.4
37.2
44.7 |
96
88
86 |
67
72
68 |
2900 |
55.0 |
4.5 |
590 |
200-315/235（I） |
226
322
419 |
62.8
89.4
116.4 |
15.5
14
10 |
73
78
83 |
1450 |
18.5 |
4.0 |
390 |
| 100-315/295（I） |
86
143
172 |
23.8
39.7
47.8 |
106.4
111
95.2 |
68
73
69 |
2900 |
75.0 |
4.5 |
710 |
200-315/245（I） |
250
358
465 |
69.4
99.4
129.2 |
19
17
13 |
76
81
73 |
1450 |
22.0 |
4.0 |
430 |
| 100-315/307（I） |
90
150180 |
25
41.7
50 |
117
110
104.6 |
68
73
74 |
2900 |
75.0 |
4.5 |
715 |
200-315/252（I） |
280
400
520 |
77.8
111.1
144.4 |
22.2
20
14 |
78
83
75 |
1450 |
30.0 |
4.0 |
480 |
| 100-315/321（I） |
96
160
192 |
26.7
44.7
53.3 |
133
125
119 |
73
75
71 |
2900 |
90.0 |
4.5 |
800 |
200-315/295（I） |
242
346
450 |
67.2
96.1
125 |
27.5
24
18.5 |
74
81
75 |
1450 |
37.0 |
4.0 |
535 |
| 150-250/235 |
117
167
217.5 |
32.5
46.4
60.4 |
15.2
14
12 |
74
79
77 |
1450 |
11.0 |
3.0 |
245 |
200-315/307（I） |
262
374
486 |
72.8
103.9
135 |
31.5
28
25 |
75
81
77 |
1450 |
45.0 |
4.0 |
560 |
注：长宽比终结以备货后供给长宽比算起。
表3
|
型号 |
流量 |
扬程
m |
效率
% |
转速
r/min |
电机功率 |
必需气蚀余量 |
重量
Kg |
|
型号 |
流量 |
扬程
m |
效率
% |
转速
r/min |
电机功率 |
必需气蚀余量 |
重量
Kg |
| m3/h |
L/S |
m3/h |
L/S |
| 200-315/321（I） |
280
400
520 |
77.8
111.1
144.4 |
36
32
26 |
76
83
78 |
1450 |
55.0 |
4.0 |
680 |
300-500/465 |
432
609
728 |
117.6
169.3
202.2 |
65
62
56 |
74
86
75 |
1450 |
160 |
5.5 |
1980 |
| 200-400/365（I） |
224
320
416 |
62.2
88.9
115.6 |
34.9
32
25 |
70
79
70 |
1450 |
45 |
4.0 |
585 |
300-500/505 |
460
662
791 |
127.8
184
219.8 |
74
70.5
63.5 |
76
82
77 |
1450 |
200 |
5.5 |
2150 |
| 200-400/375（I） |
242
346
450 |
67.2
96.1
125 |
42
38
29.6 |
75
81
72 |
1450 |
55 |
4.0 |
700 |
300-500/540 |
500
720
900 |
138.9
200
250 |
86
80
72 |
77
83
78 |
1450 |
250 |
5.5 |
2280 |
| 200-400/385（I） |
262
352
486 |
72.8
103.9
135 |
48
44
35 |
75
83
79 |
1450 |
75 |
4.0 |
835 |
350-410/330 |
620
931
1165 |
172.2
258.6
323.6 |
17.5
15.0
13.0 |
71
78
77 |
970 |
55 |
5.5 |
1320 |
| 200-400/400（I） |
280
400
520 |
77.8
111.1
144.4 |
54.5
50
39 |
79
84
79 |
1450 |
75 |
4.0 |
835 |
350-410/375 |
663
995
1240 |
184.2
276.4
345.8 |
20.0
17.0
15.0 |
74
80
78 |
970 |
75 |
5.5 |
1490 |
| 200-500/425（I） |
224
320
416 |
62.2
88.9
115.6 |
62
56
48 |
74
79
75 |
1450 |
75 |
4.0 |
1050 |
350-410/410 |
718
1080
1345 |
199.4
300.0
373.6 |
23.5
20.0
18.0 |
76
82
80 |
970 |
90 |
5.5 |
1730 |
| 200-500/465（I） |
242
346
450 |
67.2
96.1
125 |
65
60
54 |
76
80
77 |
1450 |
90 |
5.0 |
1290 |
|
350-480/425 |
620
931
1165 |
172.2
258.0
323.6 |
26.5
24.0
21.0 |
73
79
75 |
970 |
90 |
5.5 |
1750 |
| 200-500/505（I） |
262
374
486 |
72.8
103.9
135 |
76
70
63 |
77
82
79 |
1450 |
110 |
5.0 |
1415 |
350-480/450 |
663
995
1245 |
184.2
276.4
345.8 |
30.5
27.0
25.0 |
74
81
76 |
970 |
110 |
5.5 |
1910 |
| 200-500/540（I） |
280
400
520 |
72.8
141.1
144.4 |
87
80
77 |
76
83
79 |
1450 |
132 |
5.0 |
1595 |
350-480/485 |
718
1080
1345 |
199.4
300.0
375.5 |
36.4
32
28.5 |
79
83
78 |
970 |
110 |
5.5 |
2120 |
| 250-250/245 |
368
506
607 |
102.2
140.6
168.7 |
19.5
17
14.6 |
76
80
82 |
1450 |
37 |
5.0 |
550 |
350-400/375 |
620
931
1165 |
172.2
258.6
323.6 |
42.5
38.0
32.3 |
75
79
74 |
1450 |
132 |
5.5 |
1620 |
| 250-250/255 |
400
550
670 |
111.1
152.8
186.1 |
22.5
20
16 |
81
85
87 |
1450 |
45 |
5.0 |
620 |
350-400/385 |
663
995
1245 |
184.2
276.2
345.8 |
48.3
44.0
36.8 |
77
81
76 |
1450 |
160 |
5.5 |
2030 |
| 250-315/295 |
339
466
559 |
94
129.3
155.2 |
26.5
25
20 |
74
76
78 |
1450 |
45 |
5.0 |
695 |
350-400/400 |
718
1080
1345 |
199.4
300.0
373.6 |
54.7
50.0
44.2 |
78
82
77 |
1450 |
200 |
5.5 |
2120 |
| 250-315/307 |
368
506
607 |
102.2
140.6
168.7 |
31.5
28
23 |
75
78
80 |
1450 |
55 |
5.0 |
840 |
350-450/425 |
620
931
1165 |
172.2
258.6
323.6 |
51.3
46.1
41.3 |
78
78
78 |
1450 |
160 |
5.5 |
2050 |
| 250-315/321 |
400
550
670 |
111.1
152.8
186.1 |
36
32
26 |
77
80
81 |
1450 |
75 |
5.0 |
915 |
350-450/435 |
663
995
1245 |
184.2
276.4
345.8 |
59.2
54.0
48.0 |
80
80
80 |
1450 |
200 |
5.5 |
2430 |
| 250-400/365 |
311
428
514 |
86.5
119
142.8 |
38
35
30 |
66
72
68 |
1450 |
75 |
5.0 |
910 |
350-450/450 |
718
1080
1345 |
199.4
300.0
373.6 |
64.8
60.0
55.0 |
80
80
80 |
1450 |
250 |
5.5 |
2630 |
| 250-400/375 |
339
466
559 |
94
129.3
155.2 |
43
39.5
33.5 |
69
75
74 |
1450 |
75 |
5.0 |
910 |
350-350/325（I） |
900
1080
1300 |
250
300
361 |
11.5
10.5
9 |
76
60
76 |
970 |
45 |
6.0 |
1150 |
| 250-400/385 |
368
506
607 |
102.2
140.6
168.7 |
48
44
37.5 |
70
75
75 |
1450 |
90 |
5.0 |
1055 |
350-350/355（I） |
1000
1200
1450 |
277.8
333.3
402.8 |
13.5
12.5
10.5 |
76
80
77 |
970 |
55 |
6.0 |
1250 |
| 250-400/400 |
400
550
670 |
111.1
152.8
186.1 |
54.4
50
40 |
72
79
75 |
1450 |
110 |
5.0 |
1557 |
350-480/450（I） |
900
1080
1300 |
250
300
361 |
19
17
14 |
76
81
77 |
970 |
75 |
6.0 |
1350 |
| 250-500/425 |
311
428
514 |
86.5
119
142.8 |
58
55
48.5 |
72
74
73 |
1450 |
110 |
5.0 |
1350 |
|
350-480/485（I） |
1000
1200
1450 |
277.8
333.3
402.8 |
23
20
16 |
79
83
79 |
970 |
90 |
6.0 |
1580 |
| 250-500/465 |
339
466
559 |
94
129.3
155.2 |
66.5
63.5
55.5 |
73
76
75 |
1450 |
132 |
5.0 |
1420 |
350-315/295（I） |
745
985
1182 |
207
273
328 |
27
25
20 |
74
78
75 |
1450 |
110 |
6.0 |
1650 |
| 250-500/505 |
368
506
670 |
102.2
140.6
168.7 |
75
71
62.5 |
75
78
77 |
1450 |
160 |
5.0 |
1560 |
350-315/301（I） |
900
1080
1300 |
250
300
361 |
31.5
28
23 |
78
79
76 |
1450 |
132 |
6.0 |
1720 |
| 250-500/540 |
400
550
670 |
111.1
152.8
186.1 |
84
80
70 |
73
80
78 |
1450 |
200 |
5.0 |
1750 |
350-315/321（I） |
1000
1200
1450 |
277.8
333.3
402.8 |
36
32
26 |
77
81
78 |
1450 |
160 |
6.0 |
1870 |
| 300/250/245 |
460
662
791 |
127.8
184
219.8 |
20.2
17.5
14.2 |
82
84
86 |
1450 |
45 |
5.0 |
785 |
350-400/365（I） |
720
900
990 |
200
250
275 |
37
33
30 |
68
70
70 |
1450 |
132 |
6.0 |
1810 |
| 300/250/255 |
500
720
900 |
138.9
200
250 |
23
20
16 |
83
86
87 |
1450 |
55 |
5.0 |
900 |
350-400/375（I） |
745
985
1182 |
207
273
328 |
42
38.5
34 |
68
73
71 |
1450 |
160 |
6.0 |
2000 |
| 300-315/295 |
423
609
728 |
117.6
169.3
202.2 |
25.5
23.5
20 |
75
81
76 |
1450 |
55 |
5.0 |
1080 |
350-400/385（I） |
900
1080
1300 |
250
300
361 |
47.5
44
38 |
71
75
73 |
1450 |
200 |
6.0 |
2100 |
| 300-315/307 |
460
662
791 |
127.8
184
219.8 |
30.5
28
23.5 |
77
83
77 |
1450 |
75 |
5.0 |
1250 |
350-400/400（I） |
1000
1200
1450 |
277.8
333.3
402.8 |
55
50
43 |
73
77
75 |
1450 |
250 |
6.0 |
2350 |
| 300-315/321 |
500
720
900 |
138.9
200
250 |
36
32
26 |
82
85
84 |
1450 |
90 |
5.0 |
1350 |
|
400-300/290 |
1092
1456
1729 |
303.3
404.4
480.3 |
12
10.2
9 |
78
84
81 |
970 |
55 |
6.0 |
1480 |
| 300-400/365 |
389
561
670 |
108.2
155.7
186 |
35.5
33
27.5 |
72
77
75 |
1450 |
75 |
5.5 |
1250 |
400-300/305 |
1200
1600
1900 |
333.3
444.4
527.6 |
14
12.5
10.5 |
78
87
83 |
970 |
75 |
6.0 |
1650 |
| 300-400/375 |
423
609
728 |
117.6
169.3
202.2 |
41
38
32 |
75
80
78 |
1450 |
90 |
5.5 |
1400 |
400-350/340 |
1092
1456
1729 |
303.3
404.4
480. |
19.5
17
13 |
80
84
73 |
970 |
90 |
6.0 |
1780 |
| 300-400/385 |
460
662
728 |
127.8
184
.219.8 |
47
44
36.5 |
77
82
80 |
1450 |
110 |
5.5 |
1520 |
400-350/355 |
1200
1600
1900 |
333.3
444.4
527.6 |
23
20
15 |
81
85
84 |
970 |
110 |
6.0 |
1850 |
| 300-400/400 |
500
720
900 |
138.9
200
250 |
54.5
50
42 |
79
86
80 |
1450 |
132 |
5.5 |
1725 |
400-400/385 |
994
1325
1573 |
276
368
437.1 |
26
23.5
19 |
79
84
77 |
970 |
132 |
6.0 |
2150 |
| 300-500/425 |
389
561
670 |
108.2
155.7
186 |
57
54.5
49 |
71
78
73 |
1450 |
132 |
5.5 |
1850 |
400-400/395 |
1092
1456
1729 |
303.3
404.4
480.3 |
30
27.5
22.5 |
83
87
81 |
970 |
160 |
6.0 |
2320 |
| |
|
|
|
|
|
|
|
|
4000-400/400 |
1200
1600
1900 |
333.3
444.4
527.8 |
35
32
26 |
84
88
81 |
970 |
200 |
6.0 |
2450 |
注：大小之后以购货后给予大小时以。
安装使用尺寸大小表
表1
|
型号 |
DN |
L |
B3 |
L1 |
L2 |
L3 |
S1 |
HR |
HM |
a |
B2 |
4×M |
吸入口法兰 |
排出口法兰 |
| mm |
DN1 |
D1 |
D2 |
n-фd1 |
DN2 |
D3 |
D4 |
n-фd2 |
| 40-100/96 |
40 |
350 |
360 |
340 |
50 |
250 |
45 |
180 |
310 |
80 |
320 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-100/106 |
40 |
350 |
360 |
340 |
50 |
250 |
45 |
180 |
310 |
80 |
320 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-125/132 |
40 |
350 |
360 |
340 |
50 |
250 |
45 |
180 |
310 |
80 |
320 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-125/142 |
40 |
350 |
360 |
340 |
50 |
250 |
45 |
180 |
310 |
80 |
320 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-160/142 |
40 |
480 |
360 |
470 |
95 |
300 |
85 |
210 |
370 |
80 |
350 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-160/152 |
40 |
480 |
360 |
470 |
95 |
300 |
85 |
210 |
370 |
80 |
350 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-160/165 |
40 |
490 |
360 |
470 |
95 |
300 |
85 |
210 |
370 |
80 |
350 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-200/185 |
40 |
550 |
390 |
530 |
125 |
300 |
115 |
240 |
410 |
80 |
350 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-200/195 |
40 |
550 |
390 |
530 |
125 |
300 |
115 |
240 |
410 |
80 |
350 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-200/205 |
40 |
580 |
390 |
530 |
125 |
300 |
115 |
240 |
410 |
80 |
350 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-250/235 |
40 |
625 |
450 |
600 |
135 |
350 |
125 |
260 |
460 |
80 |
400 |
4×18 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-250/245 |
40 |
625 |
450 |
600 |
135 |
350 |
125 |
260 |
460 |
80 |
400 |
4×18 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-250/255 |
40 |
625 |
450 |
600 |
135 |
350 |
125 |
260 |
460 |
80 |
400 |
4×18 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 50-100/96 |
50 |
445 |
360 |
420 |
70 |
250 |
85 |
180 |
320 |
80 |
320 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-100/106 |
50 |
445 |
360 |
420 |
70 |
250 |
85 |
180 |
320 |
80 |
320 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-125/135 |
50 |
445 |
360 |
420 |
80 |
250 |
85 |
192 |
340 |
80 |
320 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-125/142 |
50 |
445 |
360 |
420 |
80 |
250 |
85 |
192 |
340 |
80 |
320 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-160/142 |
50 |
450 |
360 |
480 |
90 |
320 |
80 |
210 |
370 |
80 |
320 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-160/152 |
50 |
450 |
360 |
480 |
90 |
320 |
80 |
210 |
370 |
80 |
320 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-160/165 |
50 |
540 |
360 |
520 |
100 |
350 |
85 |
210 |
370 |
80 |
350 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-200/185 |
50 |
540 |
390 |
520 |
70 |
400 |
60 |
240 |
420 |
80 |
400 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-200/195 |
50 |
580 |
390 |
560 |
80 |
470 |
72 |
240 |
420 |
80 |
400 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-200/205 |
50 |
615 |
390 |
590 |
100 |
490 |
95 |
240 |
420 |
80 |
400 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-250/225 |
50 |
665 |
450 |
640 |
160 |
350 |
145 |
260 |
480 |
100 |
400 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-250/235 |
50 |
665 |
450 |
640 |
160 |
350 |
145 |
260 |
480 |
100 |
400 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-250/245 |
50 |
665 |
450 |
640 |
160 |
350 |
145 |
260 |
480 |
100 |
400 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-250/255 |
50 |
760 |
490 |
740 |
185 |
400 |
170 |
260 |
480 |
100 |
440 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 65-100/96 |
65 |
450 |
360 |
430 |
100 |
250 |
90 |
180 |
340 |
80 |
320 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-100/106 |
65 |
460 |
360 |
440 |
105 |
250 |
98 |
180 |
340 |
80 |
320 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-125/132 |
65 |
505 |
360 |
480 |
130 |
250 |
117 |
192 |
360 |
80 |
320 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-125/142 |
65 |
540 |
390 |
520 |
150 |
300 |
130 |
192 |
360 |
80 |
350 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-160/142 |
65 |
450 |
390 |
520 |
130 |
300 |
110 |
212 |
360 |
80 |
320 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
注：尺寸图规格结果是以订购后带来了尺寸图规格为界。
表2
|
型号 |
DN |
L |
B3 |
L1 |
L2 |
L3 |
S1 |
HR |
HM |
a |
B2 |
4×M |
吸入口法兰 |
排出口法兰 |
| mm |
DN1 |
D1 |
D2 |
n-фd1 |
DN2 |
D3 |
D4 |
n-фd2 |
| 65-160/152 |
65 |
450 |
390 |
520 |
130 |
300 |
110 |
212 |
390 |
80 |
320 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-160/165 |
65 |
580 |
390 |
560 |
150 |
300 |
130 |
212 |
390 |
80 |
350 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-200/185 |
65 |
630 |
450 |
610 |
150 |
350 |
130 |
240 |
450 |
100 |
400 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-200/195 |
65 |
630 |
450 |
610 |
150 |
350 |
130 |
240 |
450 |
100 |
400 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-200/205 |
65 |
630 |
450 |
610 |
150 |
350 |
130 |
240 |
450 |
100 |
400 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-250/235 |
65 |
760 |
490 |
740 |
190 |
400 |
170 |
260 |
485 |
100 |
440 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-250/245 |
65 |
760 |
490 |
740 |
190 |
400 |
170 |
260 |
485 |
100 |
440 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-250/255 |
65 |
760 |
490 |
740 |
190 |
400 |
170 |
260 |
485 |
100 |
440 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-315/285 |
65 |
835 |
540 |
810 |
200 |
450 |
180 |
280 |
550 |
125 |
490 |
4×18 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-315/295 |
65 |
835 |
540 |
810 |
190 |
450 |
180 |
280 |
550 |
125 |
490 |
4×18 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-315/307 |
65 |
865 |
540 |
840 |
210 |
450 |
195 |
280 |
550 |
125 |
490 |
4×18 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-315/316 |
65 |
970 |
540 |
840 |
230 |
540 |
205 |
300 |
570 |
125 |
490 |
4×18 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 80-100/96 |
80 |
530 |
360 |
500 |
115 |
300 |
105 |
190 |
350 |
100 |
320 |
4×14 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-100/106 |
80 |
565 |
390 |
540 |
130 |
300 |
120 |
190 |
350 |
100 |
320 |
4×14 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-125/132 |
80 |
600 |
390 |
580 |
100 |
400 |
90 |
210 |
370 |
100 |
350 |
4×14 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-125/142 |
80 |
640 |
400 |
620 |
125 |
400 |
110 |
210 |
370 |
100 |
350 |
4×14 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-160/142 |
80 |
630 |
450 |
630 |
150 |
350 |
130 |
240 |
420 |
100 |
400 |
4×14 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-160/152 |
80 |
630 |
450 |
630 |
150 |
350 |
130 |
240 |
420 |
100 |
400 |
4×14 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-160/165 |
80 |
630 |
450 |
630 |
150 |
350 |
130 |
240 |
420 |
100 |
400 |
4×14 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-200/185 |
80 |
670 |
490 |
630 |
145 |
400 |
125 |
240 |
440 |
100 |
440 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-200/195 |
80 |
675 |
490 |
630 |
145 |
400 |
125 |
240 |
440 |
100 |
440 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-200/205 |
80 |
675 |
490 |
630 |
145 |
400 |
125 |
240 |
440 |
100 |
440 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-250/235 |
80 |
790 |
485 |
770 |
185 |
400 |
165 |
260 |
485 |
125 |
440 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-250/245 |
80 |
835 |
485 |
810 |
230 |
400 |
205 |
260 |
485 |
125 |
440 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-250/255 |
80 |
860 |
485 |
840 |
190 |
500 |
170 |
260 |
485 |
125 |
490 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-315/285 |
80 |
970 |
605 |
950 |
230 |
540 |
205 |
305 |
605 |
125 |
550 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-315/295 |
80 |
970 |
605 |
950 |
230 |
540 |
205 |
305 |
605 |
125 |
550 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-315/301 |
80 |
970 |
605 |
950 |
230 |
540 |
205 |
305 |
605 |
125 |
550 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-315/321 |
80 |
970 |
605 |
950 |
230 |
540 |
205 |
305 |
605 |
125 |
550 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 100-200/195 |
100 |
591 |
450 |
560 |
100 |
400 |
80 |
240 |
420 |
100 |
350 |
4×18 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-200/205 |
100 |
626 |
450 |
600 |
120 |
400 |
100 |
240 |
420 |
100 |
400 |
4×18 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-250/245 |
100 |
634 |
450 |
605 |
120 |
400 |
102 |
240 |
420 |
100 |
440 |
4×18 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
注：大小最终能够以备货后提供了大小时以。
表3
|
型号 |
DN |
L |
B3 |
L1 |
L2 |
L3 |
S1 |
HR |
HM |
a |
B2 |
4×M |
吸入口法兰 |
排出口法兰 |
| Mm |
DN1 |
D1 |
D2 |
n-фd1 |
DN2 |
D3 |
D4 |
n-фd2 |
| 100-250/250 |
100 |
749 |
490 |
710 |
175 |
400 |
155 |
240 |
420 |
100 |
400 |
4×18 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-315/295 |
100 |
765 |
490 |
740 |
150 |
400 |
170 |
240 |
440 |
100 |
440 |
4×18 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-315/307 |
100 |
765 |
490 |
740 |
150 |
400 |
170 |
240 |
440 |
100 |
440 |
4×18 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-315/321 |
100 |
765 |
490 |
740 |
150 |
400 |
170 |
240 |
440 |
100 |
440 |
4×18 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-400/375 |
100 |
750 |
490 |
730 |
95 |
500 |
115 |
260 |
485 |
100 |
440 |
4×22 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-400/385 |
100 |
795 |
490 |
770 |
165 |
400 |
185 |
260 |
485 |
100 |
440 |
4×22 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-400/400 |
100 |
820 |
540 |
800 |
180 |
400 |
200 |
260 |
485 |
100 |
440 |
4×22 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-250/230（I） |
100 |
949 |
610 |
710 |
95 |
540 |
85 |
300 |
550 |
125 |
550 |
4×24 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-250/245（I） |
100 |
949 |
610 |
710 |
95 |
540 |
85 |
300 |
550 |
125 |
550 |
4×24 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-250/255（I） |
100 |
949 |
610 |
710 |
95 |
540 |
85 |
300 |
550 |
125 |
550 |
4×24 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-315/285（I） |
100 |
1050 |
660 |
1000 |
220 |
600 |
200 |
325 |
605 |
125 |
600 |
4×24 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-315/295（I） |
100 |
1050 |
660 |
1000 |
220 |
600 |
200 |
325 |
605 |
125 |
600 |
4×24 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-315/307（I） |
100 |
1085 |
660 |
1030 |
235 |
600 |
215 |
325 |
605 |
125 |
600 |
4×24 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-315/321（I） |
100 |
1415 |
730 |
1360 |
390 |
600 |
380 |
325 |
605 |
125 |
600 |
4×24 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 125-200/195 |
125 |
710 |
490 |
690 |
155 |
400 |
145 |
260 |
460 |
125 |
440 |
4×18 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-200/205 |
125 |
785 |
490 |
760 |
195 |
400 |
180 |
260 |
460 |
125 |
440 |
4×18 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-250/245 |
125 |
785 |
490 |
760 |
195 |
400 |
180 |
260 |
480 |
125 |
440 |
4×18 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-250/255 |
125 |
785 |
490 |
760 |
250 |
500 |
230 |
260 |
480 |
125 |
440 |
4×18 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-315/295 |
125 |
785 |
490 |
760 |
200 |
400 |
180 |
260 |
485 |
125 |
440 |
4×23 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-315/307 |
125 |
840 |
490 |
810 |
215 |
400 |
205 |
260 |
485 |
125 |
440 |
4×23 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-315/321 |
125 |
860 |
540 |
840 |
250 |
500 |
170 |
260 |
485 |
125 |
490 |
4×23 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-400/375 |
125 |
855 |
540 |
830 |
185 |
500 |
165 |
280 |
655 |
125 |
490 |
4×23 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-400/385 |
125 |
970 |
610 |
950 |
225 |
540 |
205 |
280 |
655 |
125 |
550 |
4×23 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-400/400 |
125 |
970 |
610 |
950 |
225 |
540 |
205 |
280 |
655 |
125 |
550 |
4×23 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-250/230（I） |
125 |
970 |
610 |
950 |
195 |
600 |
175 |
325 |
605 |
125 |
550 |
4×28 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-250/245（I） |
125 |
1030 |
610 |
1000 |
210 |
600 |
200 |
325 |
605 |
125 |
550 |
4×28 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-250/255（I） |
125 |
1100 |
660 |
1060 |
240 |
600 |
230 |
325 |
605 |
125 |
550 |
4×28 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-315/285（I） |
125 |
1190 |
730 |
1160 |
290 |
600 |
280 |
350 |
665 |
125 |
600 |
4×28 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-315/295（I） |
125 |
1190 |
730 |
1160 |
290 |
600 |
280 |
350 |
665 |
125 |
670 |
4×28 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-315/307（I） |
125 |
1190 |
730 |
1160 |
290 |
600 |
280 |
350 |
665 |
125 |
670 |
4×28 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-315/321（I） |
125 |
1230 |
730 |
2000 |
310 |
600 |
300 |
350 |
665 |
125 |
670 |
4×28 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 150-250/235 |
150 |
800 |
610 |
780 |
150 |
500 |
120 |
330 |
685 |
140 |
550 |
4×23 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
注：尽寸后面以购货后带来尽寸准确。
表4
|
型号 |
DN |
L |
B3 |
L1 |
L2 |
L3 |
S1 |
HR |
HM |
a |
B2 |
4×M |
吸入口法兰 |
排出口法兰 |
| mm |
DN1 |
D1 |
D2 |
n-фd1 |
DN2 |
D3 |
D4 |
n-фd2 |
| 150-250/245 |
150 |
845 |
610 |
820 |
180 |
500 |
160 |
330 |
685 |
140 |
550 |
4×23 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-250/255 |
150 |
870 |
610 |
830 |
180 |
500 |
165 |
330 |
685 |
140 |
550 |
4×23 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-315/295 |
150 |
910 |
660 |
165 |
165 |
600 |
145 |
380 |
740 |
140 |
600 |
4×23 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-315/307 |
150 |
910 |
660 |
165 |
165 |
600 |
145 |
380 |
740 |
140 |
600 |
4×23 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-315/321 |
150 |
975 |
660 |
190 |
190 |
600 |
175 |
380 |
760 |
140 |
600 |
4×23 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-400/365 |
150 |
990 |
660 |
950 |
200 |
600 |
175 |
415 |
740 |
140 |
600 |
4×28 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-400/375 |
150 |
990 |
660 |
950 |
200 |
600 |
175 |
415 |
715 |
140 |
600 |
4×28 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-400/385 |
150 |
1050 |
660 |
1000 |
230 |
600 |
200 |
415 |
715 |
140 |
600 |
4×28 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-400/400 |
150 |
870 |
660 |
800 |
130 |
600 |
100 |
415 |
715 |
140 |
600 |
4×28 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-510/475 |
150 |
1205 |
730 |
1180 |
280 |
660 |
260 |
415 |
1450 |
160 |
670 |
4×28 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-510/485 |
150 |
1205 |
730 |
1180 |
280 |
660 |
260 |
415 |
1450 |
160 |
670 |
4×28 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-510/795 |
150 |
1205 |
730 |
1180 |
280 |
660 |
260 |
415 |
1450 |
160 |
670 |
4×28 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-510/510 |
150 |
1205 |
730 |
1180 |
280 |
660 |
260 |
415 |
1450 |
160 |
670 |
4×28 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 200-250/235 |
200 |
907 |
660 |
880 |
160 |
600 |
140 |
360 |
740 |
160 |
600 |
4×23 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-250/245 |
200 |
947 |
660 |
920 |
180 |
600 |
160 |
360 |
740 |
160 |
600 |
4×23 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-250/255 |
200 |
930 |
660 |
900 |
170 |
600 |
150 |
360 |
760 |
160 |
600 |
4×23 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-315/295 |
200 |
995 |
660 |
970 |
200 |
600 |
185 |
380 |
780 |
160 |
600 |
4×23 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-315/307 |
200 |
1050 |
730 |
970 |
180 |
600 |
275 |
415 |
835 |
160 |
670 |
4×23 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-315/321 |
200 |
1050 |
730 |
970 |
180 |
660 |
115 |
415 |
835 |
160 |
670 |
4×23 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-400/365 |
200 |
1075 |
730 |
1000 |
190 |
660 |
170 |
415 |
835 |
160 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-400/375 |
200 |
1205 |
730 |
1180 |
280 |
660 |
260 |
415 |
855 |
160 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-400/380 |
200 |
1205 |
730 |
1180 |
280 |
660 |
260 |
415 |
855 |
160 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-400/400 |
200 |
1205 |
730 |
1180 |
280 |
660 |
260 |
415 |
855 |
160 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-500/425 |
200 |
1205 |
730 |
1180 |
280 |
660 |
260 |
415 |
855 |
160 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-500/485 |
200 |
1550 |
810 |
1500 |
370 |
660 |
350 |
415 |
1160 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-500/505 |
200 |
1495 |
810 |
1450 |
350 |
800 |
325 |
415 |
1160 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-500/540 |
200 |
1495 |
810 |
1450 |
350 |
800 |
325 |
415 |
1160 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-250/235（I） |
205 |
1075 |
730 |
1050 |
210 |
660 |
195 |
415 |
965 |
200 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-250/245（I） |
205 |
1100 |
730 |
1050 |
210 |
660 |
195 |
415 |
965 |
200 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-250/252（I） |
205 |
1185 |
730 |
1150 |
260 |
660 |
245 |
430 |
1030 |
200 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-315/295（I） |
205 |
1255 |
730 |
1230 |
300 |
660 |
285 |
430 |
1030 |
200 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-315/307（I） |
205 |
1255 |
810 |
1230 |
300 |
660 |
285 |
460 |
1160 |
200 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
注：规格从而以进货后作为规格是以。
表5
|
型号 |
DN |
L |
B3 |
L1 |
L2 |
L3 |
S1 |
HR |
HM |
a |
B2 |
4×M |
吸入口法兰 |
排出口法兰 |
| mm |
DN1 |
D1 |
D2 |
n-фd1 |
DN2 |
D3 |
D4 |
n-фd2 |
| 200-315/321（I） |
205 |
1305 |
730 |
1270 |
300 |
700 |
285 |
460 |
1160 |
200 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-400/365（I） |
205 |
1205 |
730 |
1180 |
260 |
1000 |
240 |
415 |
815 |
160 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-400/375（I） |
205 |
1205 |
730 |
1180 |
260 |
1000 |
240 |
415 |
815 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-400/385（I） |
205 |
1205 |
730 |
1180 |
260 |
1000 |
240 |
415 |
815 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-400/400（I） |
205 |
1205 |
730 |
1810 |
430 |
1000 |
405 |
415 |
815 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-500/425（I） |
205 |
1495 |
810 |
1460 |
350 |
800 |
330 |
415 |
1160 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-500/465（I） |
205 |
1495 |
810 |
1460 |
350 |
800 |
330 |
415 |
1160 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-500/505（I） |
205 |
1495 |
810 |
1460 |
350 |
800 |
330 |
415 |
1160 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-500/540（I） |
205 |
1495 |
810 |
1460 |
350 |
800 |
330 |
415 |
1160 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 250-250/245 |
205 |
1075 |
730 |
1030 |
250 |
660 |
235 |
415 |
965 |
200 |
670 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-250/255 |
205 |
1100 |
730 |
1050 |
250 |
660 |
235 |
415 |
965 |
200 |
670 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-315/295 |
205 |
1185 |
730 |
1140 |
300 |
660 |
285 |
430 |
1030 |
200 |
670 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-315/307 |
205 |
1255 |
730 |
1210 |
300 |
660 |
285 |
430 |
1030 |
200 |
670 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-315/321 |
205 |
1255 |
730 |
1210 |
300 |
660 |
285 |
430 |
1030 |
200 |
670 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-400/365 |
250 |
1235 |
730 |
1200 |
270 |
700 |
250 |
460 |
1150 |
200 |
670 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-400/375 |
250 |
1305 |
730 |
1290 |
270 |
700 |
245 |
460 |
1150 |
200 |
670 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-400/385 |
250 |
1305 |
730 |
1290 |
270 |
700 |
245 |
460 |
1150 |
200 |
670 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-400/400 |
250 |
1495 |
730 |
1470 |
350 |
700 |
335 |
460 |
1150 |
200 |
670 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-500/425 |
250 |
1760 |
810 |
1470 |
400 |
1000 |
370 |
520 |
1250 |
200 |
750 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-500/465 |
250 |
1760 |
810 |
1470 |
400 |
1000 |
370 |
520 |
1250 |
200 |
750 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-500/505 |
250 |
1760 |
810 |
1470 |
400 |
1000 |
370 |
520 |
1250 |
200 |
750 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-500/540 |
250 |
1860 |
810 |
1840 |
450 |
1000 |
420 |
520 |
1250 |
200 |
750 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 300-250/245 |
300 |
1275 |
730 |
1230 |
300 |
660 |
285 |
450 |
1060 |
250 |
670 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-250/252 |
300 |
1325 |
730 |
1280 |
330 |
660 |
310 |
450 |
1060 |
250 |
670 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-315/295 |
300 |
1325 |
730 |
1280 |
330 |
660 |
310 |
460 |
1030 |
250 |
750 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-315/307 |
300 |
1515 |
730 |
1480 |
440 |
660 |
410 |
460 |
1030 |
250 |
750 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-315/321 |
300 |
1515 |
820 |
1480 |
370 |
800 |
340 |
460 |
1030 |
250 |
750 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-400/365 |
300 |
1630 |
910 |
1600 |
320 |
1000 |
300 |
460 |
1250 |
250 |
850 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-400/375 |
300 |
1660 |
910 |
1620 |
320 |
1000 |
310 |
460 |
1205 |
250 |
850 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-400/385 |
300 |
1660 |
910 |
1620 |
320 |
1000 |
310 |
460 |
1205 |
250 |
850 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-400/400 |
300 |
1565 |
810 |
1540 |
300 |
1000 |
270 |
460 |
1160 |
250 |
750 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-500/425 |
300 |
1635 |
810 |
1600 |
330 |
1000 |
300 |
460 |
1160 |
250 |
750 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
注：尽寸最后以订购后给予尽寸起算。
表6
|
型号 |
DN |
L |
B3 |
L1 |
L2 |
L3 |
S1 |
HR |
HM |
a |
B2 |
4×M |
吸入口法兰 |
排出口法兰 |
| mm |
DN1 |
D1 |
D2 |
n-фd1 |
DN2 |
D3 |
D4 |
n-фd2 |
| 300-500-465 |
300 |
1915 |
810 |
1880 |
460 |
1000 |
440 |
550 |
1350 |
250 |
850 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-500/505 |
300 |
1915 |
910 |
1880 |
460 |
1000 |
440 |
550 |
1350 |
250 |
850 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-500/540 |
300 |
1915 |
910 |
1880 |
460 |
1000 |
440 |
550 |
1350 |
250 |
850 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 350-410/330 |
350 |
1720 |
810 |
1690 |
360 |
100 |
345 |
510 |
1200 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-410/375 |
350 |
1720 |
810 |
1690 |
360 |
1000 |
345 |
510 |
1200 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-410/410 |
350 |
1980 |
810 |
1950 |
450 |
1000 |
425 |
550 |
1300 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-480/425 |
350 |
1980 |
810 |
1950 |
450 |
1000 |
425 |
580 |
1450 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-480/450 |
350 |
2180 |
910 |
2150 |
580 |
1000 |
575 |
580 |
1450 |
280 |
850 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-480/485 |
350 |
2180 |
910 |
2150 |
580 |
1000 |
575 |
580 |
1450 |
280 |
850 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-400/375 |
350 |
1980 |
910 |
1900 |
500 |
1000 |
450 |
550 |
1300 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-400/385 |
350 |
1980 |
910 |
1900 |
500 |
1000 |
450 |
550 |
1300 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-400/400 |
350 |
1980 |
910 |
1900 |
500 |
1000 |
450 |
550 |
1300 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-450/425 |
350 |
2180 |
910 |
1900 |
610 |
1000 |
550 |
580 |
1450 |
280 |
850 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-450/435 |
350 |
2180 |
910 |
1900 |
610 |
1000 |
550 |
580 |
1450 |
280 |
850 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-450/450 |
350 |
2180 |
910 |
1900 |
610 |
1000 |
550 |
580 |
1450 |
280 |
850 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-350/325（I） |
350 |
1275 |
810 |
1250 |
250 |
800 |
225 |
460 |
1060 |
250 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-350/355（I） |
350 |
1325 |
810 |
1300 |
280 |
800 |
250 |
460 |
1060 |
250 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-480/365（I） |
350 |
1520 |
810 |
1500 |
330 |
900 |
300 |
460 |
1150 |
250 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-480/375（I） |
350 |
1520 |
810 |
1500 |
330 |
900 |
300 |
460 |
1150 |
250 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-315/295（I） |
350 |
1980 |
810 |
1950 |
450 |
1000 |
425 |
550 |
810 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-315/301（I） |
350 |
1980 |
810 |
1950 |
450 |
1000 |
425 |
550 |
810 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-315/321（I） |
350 |
1980 |
810 |
1950 |
450 |
1000 |
425 |
550 |
810 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-400/365（I） |
350 |
2100 |
910 |
2050 |
550 |
1000 |
525 |
580 |
910 |
280 |
850 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-400/375（I） |
350 |
2100 |
910 |
2050 |
550 |
1000 |
525 |
580 |
910 |
280 |
850 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-400/385（I） |
350 |
2100 |
910 |
2050 |
550 |
1000 |
525 |
580 |
910 |
280 |
850 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-400/400（I） |
350 |
2100 |
910 |
2050 |
550 |
1000 |
525 |
580 |
910 |
280 |
850 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 400-300/290 |
400 |
1410 |
910 |
1350 |
200 |
1000 |
175 |
460 |
1150 |
250 |
750 |
4×28 |
400 |
515 |
565 |
16-26 |
400 |
515 |
565 |
16-26 |
| 400-300/305 |
400 |
1520 |
910 |
1460 |
250 |
1000 |
230 |
460 |
1150 |
250 |
750 |
4×18 |
400 |
515 |
565 |
16-26 |
400 |
515 |
565 |
16-26 |
| 400-350/340 |
400 |
1630 |
910 |
1560 |
300 |
1000 |
280 |
460 |
1250 |
250 |
850 |
4×18 |
400 |
515 |
565 |
16-26 |
400 |
515 |
565 |
16-26 |
| 400-350/355 |
400 |
1660 |
910 |
1600 |
330 |
1000 |
300 |
460 |
1250 |
250 |
850 |
4×18 |
400 |
515 |
565 |
16-26 |
400 |
515 |
565 |
16-26 |
| 400-400/385 |
400 |
1980 |
910 |
1600 |
510 |
1000 |
490 |
510 |
1300 |
250 |
850 |
4×32 |
400 |
515 |
565 |
16-26 |
400 |
515 |
565 |
16-26 |
| 400-400/395 |
400 |
2050 |
910 |
1600 |
550 |
1000 |
525 |
510 |
1300 |
250 |
850 |
4×32 |
400 |
515 |
565 |
16-26 |
400 |
515 |
565 |
16-26 |
| 400-400/450 |
400 |
2050 |
910 |
1600 |
550 |
1000 |
525 |
510 |
1300 |
250 |
850 |
4×32 |
400 |
515 |
565 |
16-26 |
400 |
515 |
565 |
16-26 |
注：规格最中以订购后提拱规格为基准。
注：
1.本网页的IHB型便拆式化工球友会
结构、结构图、尺寸、参数、流量、扬程、电机转速等主要性能参数，以及安装尺寸图、安装尺寸表均只适用于参考，详细CAD图、安装图、以及产品说明书请向球友会水泵营销人员索取。
2.由于编辑水平有限，错误和不妥之处在所难免，真诚希望您批评指正。
IHB型便拆式化工环保离心力泵涉及商品
上一页：IN型冲压熔融尿素泵
返回至本系列目录：化工泵
