YB型便拆式离心油泵、GYB型便拆式高温油泵
YB型便拆式离心油泵、GYB型便拆式高温油泵，（简称：YB、GYB离心油泵），为便拆式卧式离心油泵。其外形安装尺寸基本与ISB型泵一致，则较ISB型泵具有更高的水力效率和更优的气蚀性能，且结构更可靠，轴密封和使用寿命上均为较大的提高。非自吸装有标准风冷电机和机械密封，独特设计的电机和泵采用同轴联接。带有法兰的螺旋形通道铸铁泵壳，当泵转子部件需保养或更换配件时，不需拆电机，，泵体只需打开泵盖取出叶轮，密封更换便可，叶轮经过静平衡校验，用螺母固定在轴上，背部有平衡孔便面光滑，被加工的尺寸上高度特确，并保证具有良好的平衡。用于输送介质稀薄、清洁的非侵蚀型、但具有易燃、易爆不含固体颗粒或纤维的液体，YB型泵输送最高温度为120℃液体，YB型最高温度240℃液体。供输送汽油、煤油、柴油等石油产品。
YB型便拆式离心油泵、GYB型便拆式高温油泵
YB、GYB离心式汽油泵应用就说明

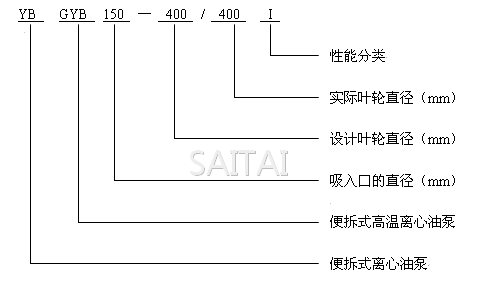

YB、GYB离心油泵型号说明
YB、GYB离心法真空泵效能技术参数
| 性能 |
流量 |
扬程 |
配套功率 |
工作压力 |
介质温度范围 |
进出口径 |
| 参数 |
1900m3/h |
133m |
250kw |
10巴巴和16巴 |
-10℃―+80℃-+240℃ |
DN40-DN400mm |
YB、GYB系类便拆式抽滤泵耐热性产品参数表 I
| 型号 |
流量 |
扬程
m
|
效率
%
|
转速
r/min
|
电机功率 |
必需气蚀余量 |
重量
Kg
|
|
型号 |
流量 |
扬程
m
|
效率
%
|
转速
r/min
|
电机功率 |
必需气蚀余量 |
重量
Kg
|
| m3/h |
L/S |
m3/h |
L/S |
| 40-100/96 |
3.9
5.6
7.4
|
1.08
1.56
2.06
|
10.6
10
9
|
49
55
43
|
2900 |
0.37 |
2.3 |
29 |
65-160/152 |
16.4
23.4
30.4
|
4.56
6.5
8.44
|
30
28
24.5
|
57
65
62
|
2900 |
4.0 |
2.5 |
75 |
| 40-100/106 |
4.4
6.3
8.3
|
1.22
1.75
2.31
|
13.2
12.5
11.3
|
51
57
56
|
2900 |
0.55 |
2.3 |
30 |
65-160/165 |
17.5
25
32.5
|
4.86
6.94
9.04
|
34.4
32
27.5
|
57
66
63
|
2900 |
4.0 |
2.5 |
75 |
| 40-125/132 |
3.9
5.6
7.4
|
1.08
1.56
2.06
|
17.6
16
14.4
|
44
48
46
|
2900 |
0.75 |
2.3 |
32 |
65-200/185 |
15.2
21.8
28.3
|
4.22
6.06
7.86
|
40.5
38
34
|
49
58
58
|
2900 |
5.5 |
2.5 |
100 |
| 40-125/142 |
4.4
6.3
8.3
|
1.22
1.75
2.31
|
21
20
18
|
44
49
47
|
2900 |
1.1 |
2.3 |
35 |
|
65-200/195 |
16.4
23.5
30.5
|
4.56
6.53
8.47
|
46.4
44
40
|
61
60
61
|
2900 |
7.5 |
2.5 |
110 |
| 40-160/142 |
3.8
5.5
7.2
|
1.06
1.53
2.00
|
25.5
24
22.5
|
40
40
40
|
2900 |
1.1 |
2.3 |
32 |
65-200/205 |
17.5
25
32.5
|
4.86
6.94
9.03
|
52.7
50
45.5
|
52
61
62
|
2900 |
7.5 |
2.5 |
115 |
| 40-160/152 |
4.1
5.9
7.8
|
1.13
1.63
2.16
|
29
28
26.3
|
36
41
41
|
2900 |
1.5 |
2.3 |
33 |
65-250/235 |
15
21.6
28
|
4.17
6.0
7.78
|
61
60
58
|
41
51
54
|
2900 |
11.0 |
2.5 |
170 |
| 40-160/165 |
4.4
6.3
8.3
|
1.22
1.75
2.31
|
34
32.30
|
40
44
43
|
2900 |
2.2 |
2.3 |
35 |
65-200/245 |
16.4
23.4
30.5
|
4.56
6.5
8.47
|
71.5
70
67
|
48
53
55
|
2900 |
11.0 |
2.5 |
170 |
| 40-200/185 |
3.7
5.3
7.3
|
1.03
1.47
1.74
|
38
36
34.5
|
32
32
32
|
2900 |
2.2 |
2.3 |
50 |
65-250/255 |
17.5
25
32.5
|
4.89
6.94
9.03
|
82
80
76.5
|
42
53
55
|
2900 |
15.0 |
2.5 |
185 |
| 40-200/195 |
4.1
5.9
7.8
|
1.4
1.64
2.17
|
45
44
42
|
24
34
32
|
2900 |
3.0 |
2.3 |
58 |
65-315/285 |
14.4
20.6
26.8
|
4.0
5.72
7.44
|
86
85
83
|
33
41
44
|
2900 |
15.0 |
2.5 |
210 |
| 40-200/205 |
4.4
6.3
8.3
|
1.22
1.75
2.31
|
51
50
48
|
29
36
35
|
2900 |
4.0 |
2.3 |
69 |
65-315/295 |
15.7
22.5
29.2
|
4.36
6.25
8.0
|
103
101
98
|
34
42
45
|
2900 |
18.5 |
2.5 |
225 |
| 40-250/235 |
3.8
5.5
7.2
|
1.06
1.53
2.00
|
61.5
60
56
|
26
30
29
|
2900 |
5.5 |
2.3 |
80 |
65-315/307 |
16.6
23.7
31
|
4.61
6.58
8.6
|
115
113
110
|
35
43
47
|
2900 |
22.0 |
2.5 |
260 |
| 40-250/245 |
4.1
5.9
7.8
|
1.14
1.64
2.17
|
72
70
65
|
27
31
30
|
2900 |
5.5 |
2.3 |
105 |
65-315/316 |
17.5
25
32.5
|
4.86
6.94
9.03
|
127
125
122
|
35
43
47
|
2900 |
30.0 |
2.5 |
320 |
| 50-250/255 |
4.4
6.3
8.3
|
1.22
1.75
2.31
|
82
80
74
|
27
31
31
|
2900 |
7.5 |
2.3 |
110 |
80-100/96 |
31.3
45
58
|
8.7
12.5
16.1
|
11
10
8
|
69
75
71
|
2900 |
2.2 |
3.0 |
60 |
| 50-100/96 |
8
11
14.5
|
2.22
3.05
4.03
|
11
10
9
|
57
63
60
|
2900 |
0.75 |
2.3 |
35 |
80-100/106 |
35
50
65
|
9.72
13.9
18.1
|
13.8
12.5
10
|
70
76
73
|
2900 |
3.0 |
3.0 |
65 |
| 50-100/106 |
8.8
12.5
16.5
|
2.44
3.47
4.53
|
13.6
12.5
11.3
|
58
65
63
|
2900 |
1.1 |
2.3 |
40 |
|
80-125/132 |
31.3
45
58
|
8.7
12.5
16.1
|
17.5
16
13.6
|
67
74
72
|
2900 |
4.0 |
3.0 |
80 |
| 50-125/132 |
8
11
14.5
|
2.22
3.05
4.03
|
17
16
14
|
61
60
58
|
2900 |
1.1 |
2.3 |
40 |
80-125/142 |
35
50
65
|
9.72
13.9
18.1
|
22
20
17
|
70
75
73
|
2900 |
5.5 |
3.0 |
100 |
| 50-125/142 |
8.8
12.5
16.3
|
2.44
3.47
4.53
|
21.5
20
17.8
|
52
61
60
|
2900 |
1.5 |
2.3 |
45 |
80-160/142 |
30.3
43.3
56.3
|
8.4
12.0
15.6
|
27
24
20
|
64
72
70
|
2900 |
5.5 |
3.0 |
100 |
| 50-160/142 |
7.3
10.4
13.5
|
2.03
2.89
3.75
|
23
22
20.5
|
50
50
50
|
2900 |
1.5 |
2.3 |
46 |
80-160/152 |
32.7
46.7
61
|
9.1
13.0
16.9
|
30.6
28
25
|
65
73
72
|
2900 |
7.5 |
3.0 |
105 |
| 50-160/152 |
8.2
11.7
15.2
|
2.28
3.25
4.22
|
29
28
26
|
40
51
50
|
2900 |
2.2 |
2.3 |
50 |
80-160/165 |
35
50
65
|
9.72
13.9
18.1
|
35
32
28
|
66
74
75
|
2900 |
7.5 |
3.0 |
105 |
| 50-160/165 |
8.8
12.5
16.3
|
2.44
3.47
4.53
|
33
32
30
|
45
52
51
|
2900 |
3.0 |
2.3 |
60 |
80-200/185 |
30.5
43.5
56.6
|
8.5
12.1
15.7
|
40.6
38
33.4
|
56
68
69
|
2900 |
7.5 |
3.0 |
120 |
| 50-200/185 |
7.5
10.6
13.8
|
2.08
2.94
3.83
|
40
38
35
|
44
44
44
|
2900 |
3.0 |
2.3 |
70 |
80-200/195 |
32.8
47
61
|
9.1
13.1
16.9
|
47
44
40
|
57
69
72
|
2900 |
11.0 |
3.0 |
170 |
| 50-200/195 |
8.3
11.7
15.3
|
2.31
3.25
4.25
|
45.8
44
42
|
37
45
45
|
2900 |
4.0 |
2.3 |
85 |
80-200/205 |
35
50
65
|
9.72
13.9
18.1
|
53.3
50
46
|
58
70
71
|
2900 |
15.0 |
3.0 |
175 |
| 50-200/205 |
8.8
12.5
16.3
|
2.44
3.47
4.53
|
52
50
48
|
38
46
46
|
2900 |
5.5 |
2.3 |
105 |
80-250/235 |
30
43.3
56
|
8.3
12.0
15.6
|
63
60
54
|
54
61
62
|
2900 |
15.0 |
3.0 |
190 |
| 50-250/225 |
7.1
10.0
13.1
|
1.97
2.78
3.64
|
53.2
52
50.4
|
27
36
39
|
2900 |
5.5 |
2.3 |
110 |
80-250/245 |
32.5
46.7
61
|
9.0
13.0
16.9
|
73
70
64
|
53
62
63
|
2900 |
18.5 |
3.0 |
210 |
| 50-250/235 |
7.6
10.8
14
|
2.11
3.0
3.98
|
61.5
60
58
|
27.5
37
40
|
2900 |
7.5 |
2.3 |
115 |
80-250/255 |
35
53
65
|
9.72
13.9
18.1
|
83
80
72
|
55
62
63
|
2900 |
22.0 |
3.0 |
240 |
| 50-250/245 |
8.2
11.6
15.2
|
2.28
3.22
4.22
|
71.5
70
68
|
29
38
41
|
2900 |
7.5 |
2.3 |
120 |
80-315/285 |
29
41
53.6
|
9.1
11.4
14.9
|
88
85
83
|
40
53
57
|
2900 |
22.0 |
3.0 |
275 |
| 50-250/255 |
8.8
12.5
16.3
|
2.44
3.47
4.53
|
82
80
77.5
|
29
38
40
|
2900 |
11.0 |
2.3 |
160 |
80-315/295 |
31
44.5
58
|
8.6
12.4
16.1
|
103
101
97
|
43
55
58
|
2900 |
30.0 |
3.0 |
340 |
| 65-100/96 |
15.6
22.3
29
|
4.3
6.19
8.1
|
11
10
8.4
|
68
70
70
|
2900 |
1.1 |
2.5 |
40 |
80-315/301 |
32.5
46.5
60.5
|
9
12.9
16.8
|
116
113
110
|
44
56
59
|
2900 |
30.0 |
3.0 |
345 |
| 65-100/106 |
17.5
25
32.5
|
4.68
6.94
9.03
|
13.7
12.5
10.5
|
70
72
71
|
2900 |
1.5 |
2.5 |
45 |
80-315/321 |
35
50
65
|
9.72
13.9
18.1
|
128
125
122
|
45
57
60
|
2900 |
37.0 |
3.0 |
360 |
| 65-125/132 |
15.6
22.3
29
|
4.33
6.19
8.1
|
17.5
16
14.4
|
51
69
68
|
2900 |
2.2 |
2.5 |
50 |
100-200/195 |
62.6
89
116
|
17.4
24.7
32.2
|
11
10
8.8
|
67
77
77
|
2900 |
4.0 |
4.5 |
115 |
| 65-125/142 |
17.5
25
32.5
|
4.86
6.94
9.03
|
22
20
18
|
63
71
70
|
2900 |
3.0 |
2.5 |
60 |
100-200/205 |
70
100
130
|
19.4
27.8
36.1
|
13.6
12.5
11
|
69
79
77
|
2900 |
5.5 |
4.5 |
90 |
| 65-160/142 |
15
21.6
28
|
4.17
6.10
8.44
|
26
24
21
|
53
63
62
|
2900 |
3.0 |
2.5 |
65 |
100-250/245 |
62.6
89
116
|
17.4
24.7
32.2
|
19
16
11
|
71
77
66
|
2900 |
7.5 |
4.5 |
120 |
注：尺寸图大小决定性以进货后供给尺寸图大小起算。
YB、GYB系例便拆式离心力泵的性能参数设置表 II
|
型 号
|
流量 |
扬程
m
|
效率
%
|
转速
r/min
|
电机功率 |
必需气蚀余量 |
重量
Kg
|
|
型号 |
流量 |
扬程
m
|
效率
%
|
转速
r/min
|
电机功率 |
必需气蚀余量 |
重量
Kg
|
| m3/h |
L/S |
m3/h |
L/S |
| 100-250/250 |
70
100
130
|
19.4
27.8
36.1
|
23.5
20
14
|
73
79
68
|
1450 |
11.0 |
4.5 |
170 |
150-250/245 |
129
184
240
|
35.8
51.2
66.7
|
18.5
17
14.4
|
75
81
79
|
1450 |
15.0 |
3.0 |
265 |
| 100-315/295 |
60.6
86.6
112.5
|
16.8
24.1
31.3
|
27
24
18
|
66
75
68
|
1450 |
11.0 |
4.5 |
180 |
150-250/255 |
140
200
260
|
38.9
55.6
72.2
|
21.8
20
17
|
76
82
80
|
1450 |
18.5 |
3.0 |
300 |
| 100-315/307 |
65.4
93.5
121.6
|
18.2
26.2
33.8
|
32
28
21
|
71
77
70
|
1450 |
11.0 |
4.5 |
185 |
150-315/295 |
121
173
225
|
33.6
48.1
62.5
|
25
24
21
|
71
79
77
|
1450 |
18.5 |
3.5 |
310 |
| 100-315/321 |
70
100
130
|
19.4
27.8
36.1
|
36.5
32
24
|
73
77
68
|
1450 |
15.0 |
4.0 |
200 |
|
150-315/307 |
131
187
243
|
36.4
51.9
67.5
|
29.5
28
24.4
|
72
80
80
|
1450 |
22.0 |
3.5 |
335 |
| 100-400/375 |
61
87
113
|
16.9
24.2
31.4
|
41
38
34
|
63
73
71
|
1450 |
15.0 |
4.0 |
195 |
150-315/321 |
140
200
260
|
38.9
55.6
72.2
|
33.8
32
28
|
73
81
76
|
1450 |
30.0 |
3.5 |
410 |
| 100-400/385 |
65.4
93.5
121.6
|
18.2
26.0
33.8
|
47.5
44
37
|
65
75
73
|
1450 |
18.5 |
4.0 |
215 |
150-400/365 |
112
160
208
|
31.1
44.4
57.8
|
34
32
28
|
68
72
72
|
1450 |
22.0 |
3.5 |
430 |
| 100-400/400 |
70
100
130
|
19.4
27.8
36.1
|
54
50
42
|
64
76
78
|
1450 |
22.0 |
4.0 |
245 |
150-400/375 |
122
174
226
|
33.9
48.3
62.9
|
41
38
33
|
70
75
74
|
1450 |
30.0 |
3.5 |
480 |
| 100-250/230（I） |
61
87
113
|
16.9
24.2
31.4
|
65
60
51
|
63
70
69
|
2900 |
30.0 |
4.0 |
330 |
150-400/385 |
131
187
243
|
36.4
51.9
67.5
|
46.6
44
38.3
|
71
77
76
|
1450 |
37.0 |
3.5 |
500 |
| 100-250/245（I） |
65.4
93.5
121.6
|
18.2
26.0
33.8
|
76
70
53.5
|
64
71
70
|
2900 |
30.0 |
4.0 |
330 |
150-400/400 |
140
200
260
|
38.9
55.6
72.2
|
53
50
44
|
72
78
72
|
1450 |
45.0 |
3.5 |
515 |
| 100-250/250（I） |
70
100
130
|
19.4
27.8
36.1
|
87
85
76
|
55
65
66
|
2900 |
37.0 |
4.0 |
345 |
150-510/475 |
112
160
208
|
31.1
44.4
57.8
|
56.5
54.5
51
|
62
67
66
|
1450 |
45.0 |
4.2 |
530 |
| 100-315/285（I） |
58
82
107
|
16.1
22.8
29.7
|
90
85
76
|
55
65
66
|
2900 |
37.0 |
4.0 |
385 |
150-510/485 |
122
174
226
|
33.9
48.3
62.9
|
65
62
58
|
63
69
68
|
1450 |
55.0 |
4.2 |
765 |
| 100-315/295（I） |
63
90
117
|
17.5
25.0
32.5
|
106.6
101
92
|
57
67
68
|
2900 |
45.0 |
4.0 |
440 |
150-510/495 |
131
187
243
|
36.4
51.9
67.5
|
73
70
66
|
65
71
69
|
1450 |
75.0 |
4.2 |
860 |
| 100-315/307（I） |
66.5
95
123.6
|
18.5
26.4
34.3
|
119
113
104
|
58
68
69
|
2900 |
55.0 |
4.0 |
550 |
150-510/510 |
140
200
260
|
38.9
55.6
72.2
|
84
80
75
|
66
72
69
|
1450 |
75.0 |
4.2 |
860 |
| 100-315/321（I） |
70
100
130
|
19.4
27.8
36.1
|
132
125
114
|
58
69
69
|
2900 |
75.0 |
4.0 |
685 |
200-250/235 |
157
243
316
|
43.7
67.5
87.8
|
16
13.5
9.0
|
76
78
76
|
1450 |
15 |
4.0 |
270 |
| 125-200/195 |
96
143.172
|
23.9
39.7
47.8
|
10.4
10
9.6
|
80
83
82
|
1450 |
7.5 |
4.0 |
130 |
200-250/245 |
189
270
351
|
52.5
75
97.5
|
19
17
13
|
77
81
77
|
1450 |
18.5 |
4.0 |
390 |
| 125-200/205 |
86
160
192
|
26.7
44.4
53.3
|
13.12.5
12
|
81
85
82
|
1450 |
11.0 |
4.0 |
180 |
200-250/255 |
210
300
360
|
58.3
83.3
100
|
22.5
20
16
|
78
83
78
|
1450 |
22 |
4.0 |
430 |
| 125-250/245 |
86
143
172
|
23.9
39.7
47.8
|
18
16
13.6
|
77
80
76
|
1450 |
11.0 |
4.0 |
210 |
200-315/295 |
189
270
324
|
52.5
75
90
|
27
23
20
|
77
81
78
|
1450 |
22 |
6.0 |
430 |
| 125-250/255 |
96
160
192
|
26.7
44.4
53.3
|
22.6
20
17
|
79
83
80
|
1450 |
15.0 |
4.0 |
225 |
200-315/307 |
196
281
337
|
54.4
78.1
93.6
|
31
27
24
|
78
82
80
|
1450 |
30 |
6.0 |
480 |
| 125-315/295 |
83
138
166
|
21.7
38.3
46.1
|
27
24
21
|
69
76
71
|
1450 |
15.0 |
4.0 |
260 |
|
200-315/321 |
210
300
360
|
58.3
83.3
100
|
36
32
28
|
77
83
81
|
1450 |
37 |
6.0 |
535 |
| 125-315/307 |
90
150
180
|
25
41.7
50
|
31.5
28
24.5
|
70
79
76
|
1450 |
18.5 |
4.0 |
280 |
200-400/365 |
176.4
252
302
|
49
70
84
|
34
30
25
|
76
79
73
|
1450 |
45 |
4.0 |
585 |
| 125-315/321 |
96
160
192
|
26.7
44.4
53.3
|
36
32
28
|
72
81
77
|
1450 |
22.0 |
5.0 |
315 |
200-400/375 |
189
270324
|
52.5
75
90
|
48
37
33
|
77
81
79
|
1450 |
45 |
4.0 |
585 |
| 125-400/375 |
83
138
166
|
21.7
38.3
46.1
|
41.3
37.5
34.5
|
71
75
71
|
1450 |
22.0 |
5.0 |
355 |
200-400/380 |
201.6
288
345.5
|
56
80
96
|
48
44
38
|
71
83
81
|
1450 |
55 |
4.0 |
700 |
| 125-400/385 |
90
150
180
|
25
41.7
50
|
48.4
44
40.5
|
72
77
76
|
1450 |
30.0 |
5.0 |
437 |
200-400/400 |
210
300
360
|
58.3
83.3
100
|
55
50
44
|
78
84
82
|
1450 |
55 |
4.0 |
700 |
| 125-400/400 |
96
160
192
|
26.7
44.4
53.3
|
55
50
46
|
74
82
80
|
1450 |
37.0 |
4.5 |
451 |
200-500/425 |
176.4
252
201.4
|
49
70
84
|
60
55
49
|
74
78
77
|
1450 |
55 |
3.0 |
700 |
| 100-250/230（I） |
83
138
166
|
21.7
38.3
46.1
|
65
60
55
|
67
76
73
|
2900 |
37.0 |
4.5 |
430 |
200-500/485 |
189
270
324
|
52.5
75
90
|
67
60
55
|
76
79
78
|
1450 |
75 |
3.0 |
835 |
| 100-250/245（I） |
90
150
180
|
25
41.7
50
|
76
70
64
|
68
77
75
|
2900 |
45.0 |
4.5 |
495 |
200-500/505 |
201.6
288
345.6
|
56
80
96
|
77
70
67
|
76
82
80
|
1450 |
90 |
3.0 |
1290 |
| 100-250/255（I） |
96
160
192
|
26.7
44.4
53.3
|
87
80
73
|
68
80
77
|
2900 |
55.0 |
4.5 |
580 |
|
200-500/540 |
210
300
360
|
58.3
83.3
100
|
87
80
75
|
77
83
81
|
1450 |
110 |
3.0 |
1415 |
| 100-315/285（I） |
80.5
134
161
|
22.4
37.2
44.7
|
96
88
86
|
67
72
68
|
2900 |
55.0 |
4.5 |
590 |
200-315/235（I） |
226
322
419
|
62.8
89.4
116.4
|
15.5
14
10
|
73
78
83
|
1450 |
18.5 |
4.0 |
390 |
| 100-315/295（I） |
86
143
172
|
23.8
39.7
47.8
|
106.4
111
95.2
|
68
73
69
|
2900 |
75.0 |
4.5 |
710 |
200-315/245（I） |
250
358
465
|
69.4
99.4
129.2
|
19
17
13
|
76
81
73
|
1450 |
22.0 |
4.0 |
430 |
| 100-315/307（I） |
90
150180
|
25
41.7
50
|
117
110
104.6
|
68
73
74
|
2900 |
75.0 |
4.5 |
715 |
200-315/252（I） |
280
400
520
|
77.8
111.1
144.4
|
22.2
20
14
|
78
83
75
|
1450 |
30.0 |
4.0 |
480 |
| 100-315/321（I） |
96
160
192
|
26.7
44.7
53.3
|
133
125
119
|
73
75
71
|
2900 |
90.0 |
4.5 |
800 |
200-315/295（I） |
242
346
450
|
67.2
96.1
125
|
27.5
24
18.5
|
74
81
75
|
1450 |
37.0 |
4.0 |
535 |
| 150-250/235 |
117
167
217.5
|
32.5
46.4
60.4
|
15.2
14
12
|
74
79
77
|
1450 |
11.0 |
3.0 |
245 |
200-315/307（I） |
262
374
486
|
72.8
103.9
135
|
31.5
28
25
|
75
81
77
|
1450 |
45.0 |
4.0 |
560 |
注：尽寸决定性以备货后提供了尽寸算起。
YB、GYB系统便拆式离心法泵特性主要参数表 III
|
型号
|
流量 |
扬程
m
|
效率
%
|
转速
r/min
|
电机功率 |
必需气蚀余量 |
重量
Kg
|
|
型号 |
流量 |
扬程
m
|
效率
%
|
转速
r/min
|
电机功率 |
必需气蚀余量 |
重量
Kg
|
| m3/h |
L/S |
m3/h |
L/S |
| 200-315/321（I） |
280
400
520
|
77.8
111.1
144.4
|
36
32
26
|
76
83
78
|
1450 |
55.0 |
4.0 |
680 |
300-500/465 |
432
609
728
|
117.6
169.3
202.2
|
65
62
56
|
74
86
75
|
1450 |
160 |
5.5 |
1980 |
| 200-400/365（I） |
224
320
416
|
62.2
88.9
115.6
|
34.9
32
25
|
70
79
70
|
1450 |
45 |
4.0 |
585 |
300-500/505 |
460
662
791
|
127.8
184
219.8
|
74
70.5
63.5
|
76
82
77
|
1450 |
200 |
5.5 |
2150 |
| 200-400/375（I） |
242
346
450
|
67.2
96.1
125
|
42
38
29.6
|
75
81
72
|
1450 |
55 |
4.0 |
700 |
300-500/540 |
500
720
900
|
138.9
200
250
|
86
80
72
|
77
83
78
|
1450 |
250 |
5.5 |
2280 |
| 200-400/385（I） |
262
352
486
|
72.8
103.9
135
|
48
44
35
|
75
83
79
|
1450 |
75 |
4.0 |
835 |
350-410/330 |
620
931
1165
|
172.2
258.6
323.6
|
17.5
15.0
13.0
|
71
78
77
|
970 |
55 |
5.5 |
1320 |
| 200-400/400（I） |
280
400
520
|
77.8
111.1
144.4
|
54.5
50
39
|
79
84
79
|
1450 |
75 |
4.0 |
835 |
350-410/375 |
663
995
1240
|
184.2
276.4
345.8
|
20.0
17.0
15.0
|
74
80
78
|
970 |
75 |
5.5 |
1490 |
| 200-500/425（I） |
224
320
416
|
62.2
88.9
115.6
|
62
56
48
|
74
79
75
|
1450 |
75 |
4.0 |
1050 |
350-410/410 |
718
1080
1345
|
199.4
300.0
373.6
|
23.5
20.0
18.0
|
76
82
80
|
970 |
90 |
5.5 |
1730 |
| 200-500/465（I） |
242
346
450
|
67.2
96.1
125
|
65
60
54
|
76
80
77
|
1450 |
90 |
5.0 |
1290 |
|
350-480/425 |
620
931
1165
|
172.2
258.0
323.6
|
26.5
24.0
21.0
|
73
79
75
|
970 |
90 |
5.5 |
1750 |
| 200-500/505（I） |
262
374
486
|
72.8
103.9
135
|
76
70
63
|
77
82
79
|
1450 |
110 |
5.0 |
1415 |
350-480/450 |
663
995
1245
|
184.2
276.4
345.8
|
30.5
27.0
25.0
|
74
81
76
|
970 |
110 |
5.5 |
1910 |
| 200-500/540（I） |
280
400
520
|
72.8
141.1
144.4
|
87
80
77
|
76
83
79
|
1450 |
132 |
5.0 |
1595 |
350-480/485 |
718
1080
1345
|
199.4
300.0
375.5
|
36.4
32
28.5
|
79
83
78
|
970 |
110 |
5.5 |
2120 |
| 250-250/245 |
368
506
607
|
102.2
140.6
168.7
|
19.5
17
14.6
|
76
80
82
|
1450 |
37 |
5.0 |
550 |
350-400/375 |
620
931
1165
|
172.2
258.6
323.6
|
42.5
38.0
32.3
|
75
79
74
|
1450 |
132 |
5.5 |
1620 |
| 250-250/255 |
400
550
670
|
111.1
152.8
186.1
|
22.5
20
16
|
81
85
87
|
1450 |
45 |
5.0 |
620 |
350-400/385 |
663
995
1245
|
184.2
276.2
345.8
|
48.3
44.0
36.8
|
77
81
76
|
1450 |
160 |
5.5 |
2030 |
| 250-315/295 |
339
466
559
|
94
129.3
155.2
|
26.5
25
20
|
74
76
78
|
1450 |
45 |
5.0 |
695 |
350-400/400 |
718
1080
1345
|
199.4
300.0
373.6
|
54.7
50.0
44.2
|
78
82
77
|
1450 |
200 |
5.5 |
2120 |
| 250-315/307 |
368
506
607
|
102.2
140.6
168.7
|
31.5
28
23
|
75
78
80
|
1450 |
55 |
5.0 |
840 |
350-450/425 |
620
931
1165
|
172.2
258.6
323.6
|
51.3
46.1
41.3
|
78
78
78
|
1450 |
160 |
5.5 |
2050 |
| 250-315/321 |
400
550
670
|
111.1
152.8
186.1
|
36
32
26
|
77
80
81
|
1450 |
75 |
5.0 |
915 |
350-450/435 |
663
995
1245
|
184.2
276.4
345.8
|
59.2
54.0
48.0
|
80
80
80
|
1450 |
200 |
5.5 |
2430 |
| 250-400/365 |
311
428
514
|
86.5
119
142.8
|
38
35
30
|
66
72
68
|
1450 |
75 |
5.0 |
910 |
350-450/450 |
718
1080
1345
|
199.4
300.0
373.6
|
64.8
60.0
55.0
|
80
80
80
|
1450 |
250 |
5.5 |
2630 |
| 250-400/375 |
339
466
559
|
94
129.3
155.2
|
43
39.5
33.5
|
69
75
74
|
1450 |
75 |
5.0 |
910 |
350-350/325（I） |
900
1080
1300
|
250
300
361
|
11.5
10.5
9
|
76
60
76
|
970 |
45 |
6.0 |
1150 |
| 250-400/385 |
368
506
607
|
102.2
140.6
168.7
|
48
44
37.5
|
70
75
75
|
1450 |
90 |
5.0 |
1055 |
350-350/355（I） |
1000
1200
1450
|
277.8
333.3
402.8
|
13.5
12.5
10.5
|
76
80
77
|
970 |
55 |
6.0 |
1250 |
| 250-400/400 |
400
550
670
|
111.1
152.8
186.1
|
54.4
50
40
|
72
79
75
|
1450 |
110 |
5.0 |
1557 |
350-480/450（I） |
900
1080
1300
|
250
300
361
|
19
17
14
|
76
81
77
|
970 |
75 |
6.0 |
1350 |
| 250-500/425 |
311
428
514
|
86.5
119
142.8
|
58
55
48.5
|
72
74
73
|
1450 |
110 |
5.0 |
1350 |
|
350-480/485（I） |
1000
1200
1450
|
277.8
333.3
402.8
|
23
20
16
|
79
83
79
|
970 |
90 |
6.0 |
1580 |
| 250-500/465 |
339
466
559
|
94
129.3
155.2
|
66.5
63.5
55.5
|
73
76
75
|
1450 |
132 |
5.0 |
1420 |
350-315/295（I） |
745
985
1182
|
207
273
328
|
27
25
20
|
74
78
75
|
1450 |
110 |
6.0 |
1650 |
| 250-500/505 |
368
506
670
|
102.2
140.6
168.7
|
75
71
62.5
|
75
78
77
|
1450 |
160 |
5.0 |
1560 |
350-315/301（I） |
900
1080
1300
|
250
300
361
|
31.5
28
23
|
78
79
76
|
1450 |
132 |
6.0 |
1720 |
| 250-500/540 |
400
550
670
|
111.1
152.8
186.1
|
84
80
70
|
73
80
78
|
1450 |
200 |
5.0 |
1750 |
350-315/321（I） |
1000
1200
1450
|
277.8
333.3
402.8
|
36
32
26
|
77
81
78
|
1450 |
160 |
6.0 |
1870 |
| 300/250/245 |
460
662
791
|
127.8
184
219.8
|
20.2
17.5
14.2
|
82
84
86
|
1450 |
45 |
5.0 |
785 |
350-400/365（I） |
720
900
990
|
200
250
275
|
37
33
30
|
68
70
70
|
1450 |
132 |
6.0 |
1810 |
| 300/250/255 |
500
720
900
|
138.9
200
250
|
23
20
16
|
83
86
87
|
1450 |
55 |
5.0 |
900 |
350-400/375（I） |
745
985
1182
|
207
273
328
|
42
38.5
34
|
68
73
71
|
1450 |
160 |
6.0 |
2000 |
| 300-315/295 |
423
609
728
|
117.6
169.3
202.2
|
25.5
23.5
20
|
75
81
76
|
1450 |
55 |
5.0 |
1080 |
350-400/385（I） |
900
1080
1300
|
250
300
361
|
47.5
44
38
|
71
75
73
|
1450 |
200 |
6.0 |
2100 |
| 300-315/307 |
460
662
791
|
127.8
184
219.8
|
30.5
28
23.5
|
77
83
77
|
1450 |
75 |
5.0 |
1250 |
350-400/400（I） |
1000
1200
1450
|
277.8
333.3
402.8
|
55
50
43
|
73
77
75
|
1450 |
250 |
6.0 |
2350 |
| 300-315/321 |
500
720
900
|
138.9
200
250
|
36
32
26
|
82
85
84
|
1450 |
90 |
5.0 |
1350 |
|
400-300/290 |
1092
1456
1729
|
303.3
404.4
480.3
|
12
10.2
9
|
78
84
81
|
970 |
55 |
6.0 |
1480 |
| 300-400/365 |
389
561
670
|
108.2
155.7
186
|
35.5
33
27.5
|
72
77
75
|
1450 |
75 |
5.5 |
1250 |
400-300/305 |
1200
1600
1900
|
333.3
444.4
527.6
|
14
12.5
10.5
|
78
87
83
|
970 |
75 |
6.0 |
1650 |
| 300-400/375 |
423
609
728
|
117.6
169.3
202.2
|
41
38
32
|
75
80
78
|
1450 |
90 |
5.5 |
1400 |
400-350/340 |
1092
1456
1729
|
303.3
404.4
480.
|
19.5
17
13
|
80
84
73
|
970 |
90 |
6.0 |
1780 |
| 300-400/385 |
460
662
728
|
127.8
184
.219.8
|
47
44
36.5
|
77
82
80
|
1450 |
110 |
5.5 |
1520 |
400-350/355 |
1200
1600
1900
|
333.3
444.4
527.6
|
23
20
15
|
81
85
84
|
970 |
110 |
6.0 |
1850 |
| 300-400/400 |
500
720
900
|
138.9
200
250
|
54.5
50
42
|
79
86
80
|
1450 |
132 |
5.5 |
1725 |
400-400/385 |
994
1325
1573
|
276
368
437.1
|
26
23.5
19
|
79
84
77
|
970 |
132 |
6.0 |
2150 |
| 300-500/425 |
389
561
670
|
108.2
155.7
186
|
57
54.5
49
|
71
78
73
|
1450 |
132 |
5.5 |
1850 |
400-400/395 |
1092
1456
1729
|
303.3
404.4
480.3
|
30
27.5
22.5
|
83
87
81
|
970 |
160 |
6.0 |
2320 |
| |
|
|
|
|
|
|
|
|
4000-400/400 |
1200
1600
1900
|
333.3
444.4
527.8
|
35
32
26
|
84
88
81
|
970 |
200 |
6.0 |
2450 |
注：寸尺决定以定货后给予寸尺时以。
YB、GYB一系列便拆式抽滤泵按照面积表 I
|
型号
|
DN |
L |
B3 |
L1 |
L2 |
L3 |
S1 |
HR |
HM |
a |
B2 |
4×M |
吸入口法兰 |
排出口法兰 |
| mm |
DN1 |
D1 |
D2 |
n-фd1 |
DN2 |
D3 |
D4 |
n-фd2 |
| 40-100/96 |
40 |
350 |
360 |
340 |
50 |
250 |
45 |
180 |
310 |
80 |
320 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-100/106 |
40 |
350 |
360 |
340 |
50 |
250 |
45 |
180 |
310 |
80 |
320 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-125/132 |
40 |
350 |
360 |
340 |
50 |
250 |
45 |
180 |
310 |
80 |
320 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-125/142 |
40 |
350 |
360 |
340 |
50 |
250 |
45 |
180 |
310 |
80 |
320 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-160/142 |
40 |
480 |
360 |
470 |
95 |
300 |
85 |
210 |
370 |
80 |
350 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-160/152 |
40 |
480 |
360 |
470 |
95 |
300 |
85 |
210 |
370 |
80 |
350 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-160/165 |
40 |
490 |
360 |
470 |
95 |
300 |
85 |
210 |
370 |
80 |
350 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-200/185 |
40 |
550 |
390 |
530 |
125 |
300 |
115 |
240 |
410 |
80 |
350 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-200/195 |
40 |
550 |
390 |
530 |
125 |
300 |
115 |
240 |
410 |
80 |
350 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-200/205 |
40 |
580 |
390 |
530 |
125 |
300 |
115 |
240 |
410 |
80 |
350 |
4×14 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-250/235 |
40 |
625 |
450 |
600 |
135 |
350 |
125 |
260 |
460 |
80 |
400 |
4×18 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-250/245 |
40 |
625 |
450 |
600 |
135 |
350 |
125 |
260 |
460 |
80 |
400 |
4×18 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 40-250/255 |
40 |
625 |
450 |
600 |
135 |
350 |
125 |
260 |
460 |
80 |
400 |
4×18 |
40 |
110 |
150 |
4-18 |
40 |
110 |
150 |
4-18 |
| 50-100/96 |
50 |
445 |
360 |
420 |
70 |
250 |
85 |
180 |
320 |
80 |
320 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-100/106 |
50 |
445 |
360 |
420 |
70 |
250 |
85 |
180 |
320 |
80 |
320 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-125/135 |
50 |
445 |
360 |
420 |
80 |
250 |
85 |
192 |
340 |
80 |
320 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-125/142 |
50 |
445 |
360 |
420 |
80 |
250 |
85 |
192 |
340 |
80 |
320 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-160/142 |
50 |
450 |
360 |
480 |
90 |
320 |
80 |
210 |
370 |
80 |
320 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-160/152 |
50 |
450 |
360 |
480 |
90 |
320 |
80 |
210 |
370 |
80 |
320 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-160/165 |
50 |
540 |
360 |
520 |
100 |
350 |
85 |
210 |
370 |
80 |
350 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-200/185 |
50 |
540 |
390 |
520 |
70 |
400 |
60 |
240 |
420 |
80 |
400 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-200/195 |
50 |
580 |
390 |
560 |
80 |
470 |
72 |
240 |
420 |
80 |
400 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-200/205 |
50 |
615 |
390 |
590 |
100 |
490 |
95 |
240 |
420 |
80 |
400 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-250/225 |
50 |
665 |
450 |
640 |
160 |
350 |
145 |
260 |
480 |
100 |
400 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-250/235 |
50 |
665 |
450 |
640 |
160 |
350 |
145 |
260 |
480 |
100 |
400 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-250/245 |
50 |
665 |
450 |
640 |
160 |
350 |
145 |
260 |
480 |
100 |
400 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 50-250/255 |
50 |
760 |
490 |
740 |
185 |
400 |
170 |
260 |
480 |
100 |
440 |
4×18 |
50 |
125 |
165 |
4-18 |
50 |
125 |
165 |
4-18 |
| 65-100/96 |
65 |
450 |
360 |
430 |
100 |
250 |
90 |
180 |
340 |
80 |
320 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-100/106 |
65 |
460 |
360 |
440 |
105 |
250 |
98 |
180 |
340 |
80 |
320 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-125/132 |
65 |
505 |
360 |
480 |
130 |
250 |
117 |
192 |
360 |
80 |
320 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-125/142 |
65 |
540 |
390 |
520 |
150 |
300 |
130 |
192 |
360 |
80 |
350 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-160/142 |
65 |
450 |
390 |
520 |
130 |
300 |
110 |
212 |
360 |
80 |
320 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
注：尽寸之后以定购后保证尽寸准确。
YB、GYB系统便拆式抽滤泵装设宽度表 II
|
型号
|
DN |
L |
B3 |
L1 |
L2 |
L3 |
S1 |
HR |
HM |
a |
B2 |
4×M |
吸入口法兰 |
排出口法兰 |
| mm |
DN1 |
D1 |
D2 |
n-фd1 |
DN2 |
D3 |
D4 |
n-фd2 |
| 65-160/152 |
65 |
450 |
390 |
520 |
130 |
300 |
110 |
212 |
390 |
80 |
320 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-160/165 |
65 |
580 |
390 |
560 |
150 |
300 |
130 |
212 |
390 |
80 |
350 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-200/185 |
65 |
630 |
450 |
610 |
150 |
350 |
130 |
240 |
450 |
100 |
400 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-200/195 |
65 |
630 |
450 |
610 |
150 |
350 |
130 |
240 |
450 |
100 |
400 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-200/205 |
65 |
630 |
450 |
610 |
150 |
350 |
130 |
240 |
450 |
100 |
400 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-250/235 |
65 |
760 |
490 |
740 |
190 |
400 |
170 |
260 |
485 |
100 |
440 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-250/245 |
65 |
760 |
490 |
740 |
190 |
400 |
170 |
260 |
485 |
100 |
440 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-250/255 |
65 |
760 |
490 |
740 |
190 |
400 |
170 |
260 |
485 |
100 |
440 |
4×14 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-315/285 |
65 |
835 |
540 |
810 |
200 |
450 |
180 |
280 |
550 |
125 |
490 |
4×18 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-315/295 |
65 |
835 |
540 |
810 |
190 |
450 |
180 |
280 |
550 |
125 |
490 |
4×18 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-315/307 |
65 |
865 |
540 |
840 |
210 |
450 |
195 |
280 |
550 |
125 |
490 |
4×18 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 65-315/316 |
65 |
970 |
540 |
840 |
230 |
540 |
205 |
300 |
570 |
125 |
490 |
4×18 |
65 |
145 |
185 |
4-18 |
65 |
145 |
185 |
4-18 |
| 80-100/96 |
80 |
530 |
360 |
500 |
115 |
300 |
105 |
190 |
350 |
100 |
320 |
4×14 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-100/106 |
80 |
565 |
390 |
540 |
130 |
300 |
120 |
190 |
350 |
100 |
320 |
4×14 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-125/132 |
80 |
600 |
390 |
580 |
100 |
400 |
90 |
210 |
370 |
100 |
350 |
4×14 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-125/142 |
80 |
640 |
400 |
620 |
125 |
400 |
110 |
210 |
370 |
100 |
350 |
4×14 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-160/142 |
80 |
630 |
450 |
630 |
150 |
350 |
130 |
240 |
420 |
100 |
400 |
4×14 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-160/152 |
80 |
630 |
450 |
630 |
150 |
350 |
130 |
240 |
420 |
100 |
400 |
4×14 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-160/165 |
80 |
630 |
450 |
630 |
150 |
350 |
130 |
240 |
420 |
100 |
400 |
4×14 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-200/185 |
80 |
670 |
490 |
630 |
145 |
400 |
125 |
240 |
440 |
100 |
440 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-200/195 |
80 |
675 |
490 |
630 |
145 |
400 |
125 |
240 |
440 |
100 |
440 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-200/205 |
80 |
675 |
490 |
630 |
145 |
400 |
125 |
240 |
440 |
100 |
440 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-250/235 |
80 |
790 |
485 |
770 |
185 |
400 |
165 |
260 |
485 |
125 |
440 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-250/245 |
80 |
835 |
485 |
810 |
230 |
400 |
205 |
260 |
485 |
125 |
440 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-250/255 |
80 |
860 |
485 |
840 |
190 |
500 |
170 |
260 |
485 |
125 |
490 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-315/285 |
80 |
970 |
605 |
950 |
230 |
540 |
205 |
305 |
605 |
125 |
550 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-315/295 |
80 |
970 |
605 |
950 |
230 |
540 |
205 |
305 |
605 |
125 |
550 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-315/301 |
80 |
970 |
605 |
950 |
230 |
540 |
205 |
305 |
605 |
125 |
550 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 80-315/321 |
80 |
970 |
605 |
950 |
230 |
540 |
205 |
305 |
605 |
125 |
550 |
4×18 |
80 |
160 |
200 |
8-18 |
80 |
160 |
200 |
8-18 |
| 100-200/195 |
100 |
591 |
450 |
560 |
100 |
400 |
80 |
240 |
420 |
100 |
350 |
4×18 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-200/205 |
100 |
626 |
450 |
600 |
120 |
400 |
100 |
240 |
420 |
100 |
400 |
4×18 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-250/245 |
100 |
634 |
450 |
605 |
120 |
400 |
102 |
240 |
420 |
100 |
440 |
4×18 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
注：长度最中以购货后打造长度算起。
YB、GYB系列的便拆式离心式泵进行安装寸尺表 III
|
型号
|
DN |
L |
B3 |
L1 |
L2 |
L3 |
S1 |
HR |
HM |
a |
B2 |
4×M |
吸入口法兰 |
排出口法兰 |
| Mm |
DN1 |
D1 |
D2 |
n-фd1 |
DN2 |
D3 |
D4 |
n-фd2 |
| 100-250/250 |
100 |
749 |
490 |
710 |
175 |
400 |
155 |
240 |
420 |
100 |
400 |
4×18 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-315/295 |
100 |
765 |
490 |
740 |
150 |
400 |
170 |
240 |
440 |
100 |
440 |
4×18 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-315/307 |
100 |
765 |
490 |
740 |
150 |
400 |
170 |
240 |
440 |
100 |
440 |
4×18 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-315/321 |
100 |
765 |
490 |
740 |
150 |
400 |
170 |
240 |
440 |
100 |
440 |
4×18 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-400/375 |
100 |
750 |
490 |
730 |
95 |
500 |
115 |
260 |
485 |
100 |
440 |
4×22 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-400/385 |
100 |
795 |
490 |
770 |
165 |
400 |
185 |
260 |
485 |
100 |
440 |
4×22 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-400/400 |
100 |
820 |
540 |
800 |
180 |
400 |
200 |
260 |
485 |
100 |
440 |
4×22 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-250/230（I） |
100 |
949 |
610 |
710 |
95 |
540 |
85 |
300 |
550 |
125 |
550 |
4×24 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-250/245（I） |
100 |
949 |
610 |
710 |
95 |
540 |
85 |
300 |
550 |
125 |
550 |
4×24 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-250/255（I） |
100 |
949 |
610 |
710 |
95 |
540 |
85 |
300 |
550 |
125 |
550 |
4×24 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-315/285（I） |
100 |
1050 |
660 |
1000 |
220 |
600 |
200 |
325 |
605 |
125 |
600 |
4×24 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-315/295（I） |
100 |
1050 |
660 |
1000 |
220 |
600 |
200 |
325 |
605 |
125 |
600 |
4×24 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-315/307（I） |
100 |
1085 |
660 |
1030 |
235 |
600 |
215 |
325 |
605 |
125 |
600 |
4×24 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 100-315/321（I） |
100 |
1415 |
730 |
1360 |
390 |
600 |
380 |
325 |
605 |
125 |
600 |
4×24 |
100 |
180 |
220 |
8-18 |
100 |
180 |
220 |
8-18 |
| 125-200/195 |
125 |
710 |
490 |
690 |
155 |
400 |
145 |
260 |
460 |
125 |
440 |
4×18 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-200/205 |
125 |
785 |
490 |
760 |
195 |
400 |
180 |
260 |
460 |
125 |
440 |
4×18 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-250/245 |
125 |
785 |
490 |
760 |
195 |
400 |
180 |
260 |
480 |
125 |
440 |
4×18 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-250/255 |
125 |
785 |
490 |
760 |
250 |
500 |
230 |
260 |
480 |
125 |
440 |
4×18 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-315/295 |
125 |
785 |
490 |
760 |
200 |
400 |
180 |
260 |
485 |
125 |
440 |
4×23 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-315/307 |
125 |
840 |
490 |
810 |
215 |
400 |
205 |
260 |
485 |
125 |
440 |
4×23 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-315/321 |
125 |
860 |
540 |
840 |
250 |
500 |
170 |
260 |
485 |
125 |
490 |
4×23 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-400/375 |
125 |
855 |
540 |
830 |
185 |
500 |
165 |
280 |
655 |
125 |
490 |
4×23 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-400/385 |
125 |
970 |
610 |
950 |
225 |
540 |
205 |
280 |
655 |
125 |
550 |
4×23 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-400/400 |
125 |
970 |
610 |
950 |
225 |
540 |
205 |
280 |
655 |
125 |
550 |
4×23 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-250/230（I） |
125 |
970 |
610 |
950 |
195 |
600 |
175 |
325 |
605 |
125 |
550 |
4×28 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-250/245（I） |
125 |
1030 |
610 |
1000 |
210 |
600 |
200 |
325 |
605 |
125 |
550 |
4×28 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-250/255（I） |
125 |
1100 |
660 |
1060 |
240 |
600 |
230 |
325 |
605 |
125 |
550 |
4×28 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-315/285（I） |
125 |
1190 |
730 |
1160 |
290 |
600 |
280 |
350 |
665 |
125 |
600 |
4×28 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-315/295（I） |
125 |
1190 |
730 |
1160 |
290 |
600 |
280 |
350 |
665 |
125 |
670 |
4×28 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-315/307（I） |
125 |
1190 |
730 |
1160 |
290 |
600 |
280 |
350 |
665 |
125 |
670 |
4×28 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 125-315/321（I） |
125 |
1230 |
730 |
2000 |
310 |
600 |
300 |
350 |
665 |
125 |
670 |
4×28 |
125 |
210 |
230 |
8-18 |
125 |
210 |
230 |
8-18 |
| 150-250/235 |
150 |
800 |
610 |
780 |
150 |
500 |
120 |
330 |
685 |
140 |
550 |
4×23 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
注：尺码终极以订购后作为尺码来算。
YB、GYB系列产品便拆式离心式泵装长宽高表 III
|
型号
|
DN |
L |
B3 |
L1 |
L2 |
L3 |
S1 |
HR |
HM |
a |
B2 |
4×M |
吸入口法兰 |
排出口法兰 |
| mm |
DN1 |
D1 |
D2 |
n-фd1 |
DN2 |
D3 |
D4 |
n-фd2 |
| 150-250/245 |
150 |
845 |
610 |
820 |
180 |
500 |
160 |
330 |
685 |
140 |
550 |
4×23 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-250/255 |
150 |
870 |
610 |
830 |
180 |
500 |
165 |
330 |
685 |
140 |
550 |
4×23 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-315/295 |
150 |
910 |
660 |
165 |
165 |
600 |
145 |
380 |
740 |
140 |
600 |
4×23 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-315/307 |
150 |
910 |
660 |
165 |
165 |
600 |
145 |
380 |
740 |
140 |
600 |
4×23 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-315/321 |
150 |
975 |
660 |
190 |
190 |
600 |
175 |
380 |
760 |
140 |
600 |
4×23 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-400/365 |
150 |
990 |
660 |
950 |
200 |
600 |
175 |
415 |
740 |
140 |
600 |
4×28 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-400/375 |
150 |
990 |
660 |
950 |
200 |
600 |
175 |
415 |
715 |
140 |
600 |
4×28 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-400/385 |
150 |
1050 |
660 |
1000 |
230 |
600 |
200 |
415 |
715 |
140 |
600 |
4×28 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-400/400 |
150 |
870 |
660 |
800 |
130 |
600 |
100 |
415 |
715 |
140 |
600 |
4×28 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-510/475 |
150 |
1205 |
730 |
1180 |
280 |
660 |
260 |
415 |
1450 |
160 |
670 |
4×28 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-510/485 |
150 |
1205 |
730 |
1180 |
280 |
660 |
260 |
415 |
1450 |
160 |
670 |
4×28 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-510/795 |
150 |
1205 |
730 |
1180 |
280 |
660 |
260 |
415 |
1450 |
160 |
670 |
4×28 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 150-510/510 |
150 |
1205 |
730 |
1180 |
280 |
660 |
260 |
415 |
1450 |
160 |
670 |
4×28 |
150 |
240 |
285 |
8-22 |
150 |
240 |
285 |
8-22 |
| 200-250/235 |
200 |
907 |
660 |
880 |
160 |
600 |
140 |
360 |
740 |
160 |
600 |
4×23 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-250/245 |
200 |
947 |
660 |
920 |
180 |
600 |
160 |
360 |
740 |
160 |
600 |
4×23 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-250/255 |
200 |
930 |
660 |
900 |
170 |
600 |
150 |
360 |
760 |
160 |
600 |
4×23 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-315/295 |
200 |
995 |
660 |
970 |
200 |
600 |
185 |
380 |
780 |
160 |
600 |
4×23 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-315/307 |
200 |
1050 |
730 |
970 |
180 |
600 |
275 |
415 |
835 |
160 |
670 |
4×23 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-315/321 |
200 |
1050 |
730 |
970 |
180 |
660 |
115 |
415 |
835 |
160 |
670 |
4×23 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-400/365 |
200 |
1075 |
730 |
1000 |
190 |
660 |
170 |
415 |
835 |
160 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-400/375 |
200 |
1205 |
730 |
1180 |
280 |
660 |
260 |
415 |
855 |
160 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-400/380 |
200 |
1205 |
730 |
1180 |
280 |
660 |
260 |
415 |
855 |
160 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-400/400 |
200 |
1205 |
730 |
1180 |
280 |
660 |
260 |
415 |
855 |
160 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-500/425 |
200 |
1205 |
730 |
1180 |
280 |
660 |
260 |
415 |
855 |
160 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-500/485 |
200 |
1550 |
810 |
1500 |
370 |
660 |
350 |
415 |
1160 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-500/505 |
200 |
1495 |
810 |
1450 |
350 |
800 |
325 |
415 |
1160 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-500/540 |
200 |
1495 |
810 |
1450 |
350 |
800 |
325 |
415 |
1160 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
200 |
295 |
340 |
12-22 |
| 200-250/235（I） |
205 |
1075 |
730 |
1050 |
210 |
660 |
195 |
415 |
965 |
200 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-250/245（I） |
205 |
1100 |
730 |
1050 |
210 |
660 |
195 |
415 |
965 |
200 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-250/252（I） |
205 |
1185 |
730 |
1150 |
260 |
660 |
245 |
430 |
1030 |
200 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-315/295（I） |
205 |
1255 |
730 |
1230 |
300 |
660 |
285 |
430 |
1030 |
200 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-315/307（I） |
205 |
1255 |
810 |
1230 |
300 |
660 |
285 |
460 |
1160 |
200 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
注：长宽高从而以备货后可以提供长宽高起算。
YB、GYB型号便拆式离心力泵装有寸尺表III
|
型号
|
DN |
L |
B3 |
L1 |
L2 |
L3 |
S1 |
HR |
HM |
a |
B2 |
4×M |
吸入口法兰 |
排出口法兰 |
| mm |
DN1 |
D1 |
D2 |
n-фd1 |
DN2 |
D3 |
D4 |
n-фd2 |
| 200-315/321（I） |
205 |
1305 |
730 |
1270 |
300 |
700 |
285 |
460 |
1160 |
200 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-400/365（I） |
205 |
1205 |
730 |
1180 |
260 |
1000 |
240 |
415 |
815 |
160 |
670 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-400/375（I） |
205 |
1205 |
730 |
1180 |
260 |
1000 |
240 |
415 |
815 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-400/385（I） |
205 |
1205 |
730 |
1180 |
260 |
1000 |
240 |
415 |
815 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-400/400（I） |
205 |
1205 |
730 |
1810 |
430 |
1000 |
405 |
415 |
815 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-500/425（I） |
205 |
1495 |
810 |
1460 |
350 |
800 |
330 |
415 |
1160 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-500/465（I） |
205 |
1495 |
810 |
1460 |
350 |
800 |
330 |
415 |
1160 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-500/505（I） |
205 |
1495 |
810 |
1460 |
350 |
800 |
330 |
415 |
1160 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 200-500/540（I） |
205 |
1495 |
810 |
1460 |
350 |
800 |
330 |
415 |
1160 |
160 |
750 |
4×28 |
200 |
295 |
340 |
12-22 |
150 |
240 |
285 |
8-22 |
| 250-250/245 |
205 |
1075 |
730 |
1030 |
250 |
660 |
235 |
415 |
965 |
200 |
670 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-250/255 |
205 |
1100 |
730 |
1050 |
250 |
660 |
235 |
415 |
965 |
200 |
670 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-315/295 |
205 |
1185 |
730 |
1140 |
300 |
660 |
285 |
430 |
1030 |
200 |
670 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-315/307 |
205 |
1255 |
730 |
1210 |
300 |
660 |
285 |
430 |
1030 |
200 |
670 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-315/321 |
205 |
1255 |
730 |
1210 |
300 |
660 |
285 |
430 |
1030 |
200 |
670 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-400/365 |
250 |
1235 |
730 |
1200 |
270 |
700 |
250 |
460 |
1150 |
200 |
670 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-400/375 |
250 |
1305 |
730 |
1290 |
270 |
700 |
245 |
460 |
1150 |
200 |
670 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-400/385 |
250 |
1305 |
730 |
1290 |
270 |
700 |
245 |
460 |
1150 |
200 |
670 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-400/400 |
250 |
1495 |
730 |
1470 |
350 |
700 |
335 |
460 |
1150 |
200 |
670 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-500/425 |
250 |
1760 |
810 |
1470 |
400 |
1000 |
370 |
520 |
1250 |
200 |
750 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-500/465 |
250 |
1760 |
810 |
1470 |
400 |
1000 |
370 |
520 |
1250 |
200 |
750 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-500/505 |
250 |
1760 |
810 |
1470 |
400 |
1000 |
370 |
520 |
1250 |
200 |
750 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 250-500/540 |
250 |
1860 |
810 |
1840 |
450 |
1000 |
420 |
520 |
1250 |
200 |
750 |
4×28 |
250 |
355 |
405 |
12-26 |
250 |
355 |
405 |
12-26 |
| 300-250/245 |
300 |
1275 |
730 |
1230 |
300 |
660 |
285 |
450 |
1060 |
250 |
670 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-250/252 |
300 |
1325 |
730 |
1280 |
330 |
660 |
310 |
450 |
1060 |
250 |
670 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-315/295 |
300 |
1325 |
730 |
1280 |
330 |
660 |
310 |
460 |
1030 |
250 |
750 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-315/307 |
300 |
1515 |
730 |
1480 |
440 |
660 |
410 |
460 |
1030 |
250 |
750 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-315/321 |
300 |
1515 |
820 |
1480 |
370 |
800 |
340 |
460 |
1030 |
250 |
750 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-400/365 |
300 |
1630 |
910 |
1600 |
320 |
1000 |
300 |
460 |
1250 |
250 |
850 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-400/375 |
300 |
1660 |
910 |
1620 |
320 |
1000 |
310 |
460 |
1205 |
250 |
850 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-400/385 |
300 |
1660 |
910 |
1620 |
320 |
1000 |
310 |
460 |
1205 |
250 |
850 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-400/400 |
300 |
1565 |
810 |
1540 |
300 |
1000 |
270 |
460 |
1160 |
250 |
750 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-500/425 |
300 |
1635 |
810 |
1600 |
330 |
1000 |
300 |
460 |
1160 |
250 |
750 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
注：长度决定以备货后给出长度应写。
YB、GYB系类便拆式离心法泵施工长宽表 IV
|
型号
|
DN |
L |
B3 |
L1 |
L2 |
L3 |
S1 |
HR |
HM |
a |
B2 |
4×M |
吸入口法兰 |
排出口法兰 |
| mm |
DN1 |
D1 |
D2 |
n-фd1 |
DN2 |
D3 |
D4 |
n-фd2 |
| 300-500-465 |
300 |
1915 |
810 |
1880 |
460 |
1000 |
440 |
550 |
1350 |
250 |
850 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-500/505 |
300 |
1915 |
910 |
1880 |
460 |
1000 |
440 |
550 |
1350 |
250 |
850 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 300-500/540 |
300 |
1915 |
910 |
1880 |
460 |
1000 |
440 |
550 |
1350 |
250 |
850 |
4×28 |
300 |
410 |
460 |
16-26 |
300 |
410 |
460 |
16-26 |
| 350-410/330 |
350 |
1720 |
810 |
1690 |
360 |
100 |
345 |
510 |
1200 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-410/375 |
350 |
1720 |
810 |
1690 |
360 |
1000 |
345 |
510 |
1200 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-410/410 |
350 |
1980 |
810 |
1950 |
450 |
1000 |
425 |
550 |
1300 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-480/425 |
350 |
1980 |
810 |
1950 |
450 |
1000 |
425 |
580 |
1450 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-480/450 |
350 |
2180 |
910 |
2150 |
580 |
1000 |
575 |
580 |
1450 |
280 |
850 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-480/485 |
350 |
2180 |
910 |
2150 |
580 |
1000 |
575 |
580 |
1450 |
280 |
850 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-400/375 |
350 |
1980 |
910 |
1900 |
500 |
1000 |
450 |
550 |
1300 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-400/385 |
350 |
1980 |
910 |
1900 |
500 |
1000 |
450 |
550 |
1300 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-400/400 |
350 |
1980 |
910 |
1900 |
500 |
1000 |
450 |
550 |
1300 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-450/425 |
350 |
2180 |
910 |
1900 |
610 |
1000 |
550 |
580 |
1450 |
280 |
850 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-450/435 |
350 |
2180 |
910 |
1900 |
610 |
1000 |
550 |
580 |
1450 |
280 |
850 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-450/450 |
350 |
2180 |
910 |
1900 |
610 |
1000 |
550 |
580 |
1450 |
280 |
850 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-350/325（I） |
350 |
1275 |
810 |
1250 |
250 |
800 |
225 |
460 |
1060 |
250 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-350/355（I） |
350 |
1325 |
810 |
1300 |
280 |
800 |
250 |
460 |
1060 |
250 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-480/365（I） |
350 |
1520 |
810 |
1500 |
330 |
900 |
300 |
460 |
1150 |
250 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-480/375（I） |
350 |
1520 |
810 |
1500 |
330 |
900 |
300 |
460 |
1150 |
250 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-315/295（I） |
350 |
1980 |
810 |
1950 |
450 |
1000 |
425 |
550 |
810 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-315/301（I） |
350 |
1980 |
810 |
1950 |
450 |
1000 |
425 |
550 |
810 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-315/321（I） |
350 |
1980 |
810 |
1950 |
450 |
1000 |
425 |
550 |
810 |
280 |
750 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-400/365（I） |
350 |
2100 |
910 |
2050 |
550 |
1000 |
525 |
580 |
910 |
280 |
850 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-400/375（I） |
350 |
2100 |
910 |
2050 |
550 |
1000 |
525 |
580 |
910 |
280 |
850 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-400/385（I） |
350 |
2100 |
910 |
2050 |
550 |
1000 |
525 |
580 |
910 |
280 |
850 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 350-400/400（I） |
350 |
2100 |
910 |
2050 |
550 |
1000 |
525 |
580 |
910 |
280 |
850 |
4×28 |
350 |
460 |
550 |
16-26 |
350 |
460 |
550 |
16-26 |
| 400-300/290 |
400 |
1410 |
910 |
1350 |
200 |
1000 |
175 |
460 |
1150 |
250 |
750 |
4×28 |
400 |
515 |
565 |
16-26 |
400 |
515 |
565 |
16-26 |
| 400-300/305 |
400 |
1520 |
910 |
1460 |
250 |
1000 |
230 |
460 |
1150 |
250 |
750 |
4×18 |
400 |
515 |
565 |
16-26 |
400 |
515 |
565 |
16-26 |
| 400-350/340 |
400 |
1630 |
910 |
1560 |
300 |
1000 |
280 |
460 |
1250 |
250 |
850 |
4×18 |
400 |
515 |
565 |
16-26 |
400 |
515 |
565 |
16-26 |
| 400-350/355 |
400 |
1660 |
910 |
1600 |
330 |
1000 |
300 |
460 |
1250 |
250 |
850 |
4×18 |
400 |
515 |
565 |
16-26 |
400 |
515 |
565 |
16-26 |
| 400-400/385 |
400 |
1980 |
910 |
1600 |
510 |
1000 |
490 |
510 |
1300 |
250 |
850 |
4×32 |
400 |
515 |
565 |
16-26 |
400 |
515 |
565 |
16-26 |
| 400-400/395 |
400 |
2050 |
910 |
1600 |
550 |
1000 |
525 |
510 |
1300 |
250 |
850 |
4×32 |
400 |
515 |
565 |
16-26 |
400 |
515 |
565 |
16-26 |
| 400-400/450 |
400 |
2050 |
910 |
1600 |
550 |
1000 |
525 |
510 |
1300 |
250 |
850 |
4×32 |
400 |
515 |
565 |
16-26 |
400 |
515 |
565 |
16-26 |
注：寸尺不可能以定货后带来寸尺来算。
注：
1.本网页的YB型便拆式离心油泵、GYB型便拆式高温油泵结构、结构图、尺寸、参数、流量、扬程、电机转速等主要性能参数，以及安装尺寸图、安装尺寸表均只适用于参考，详细CAD图、安装图、以及产品说明书请向球友会水泵营销人员索取。
2.由于编辑水平有限，错误和不妥之处在所难免，真诚希望您批评指正。
YB型便拆式离心式高压液压油泵、GYB型便拆式持续高温高压液压油泵关于软件
下一页：球友会:12V（24V）直流油泵
返回至本系列目录：油泵
上一页：SZA型石油化工流程泵
